Seat Cushion Heater, Right Front (Passenger Seat)

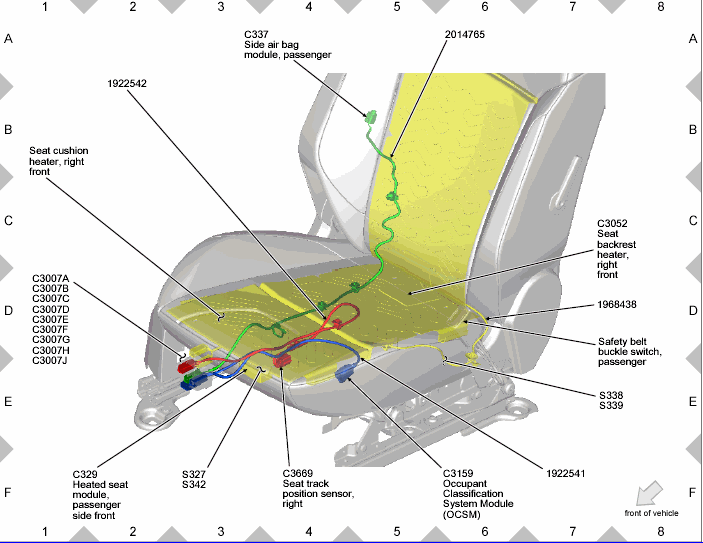

Fig 1: Seat Cushion Heater, Right Front Component Location (Passenger Seat)

G00566924

Courtesy of FORD MOTOR COMPANY
