Evaporative Emission Purge Valve (2.5L)

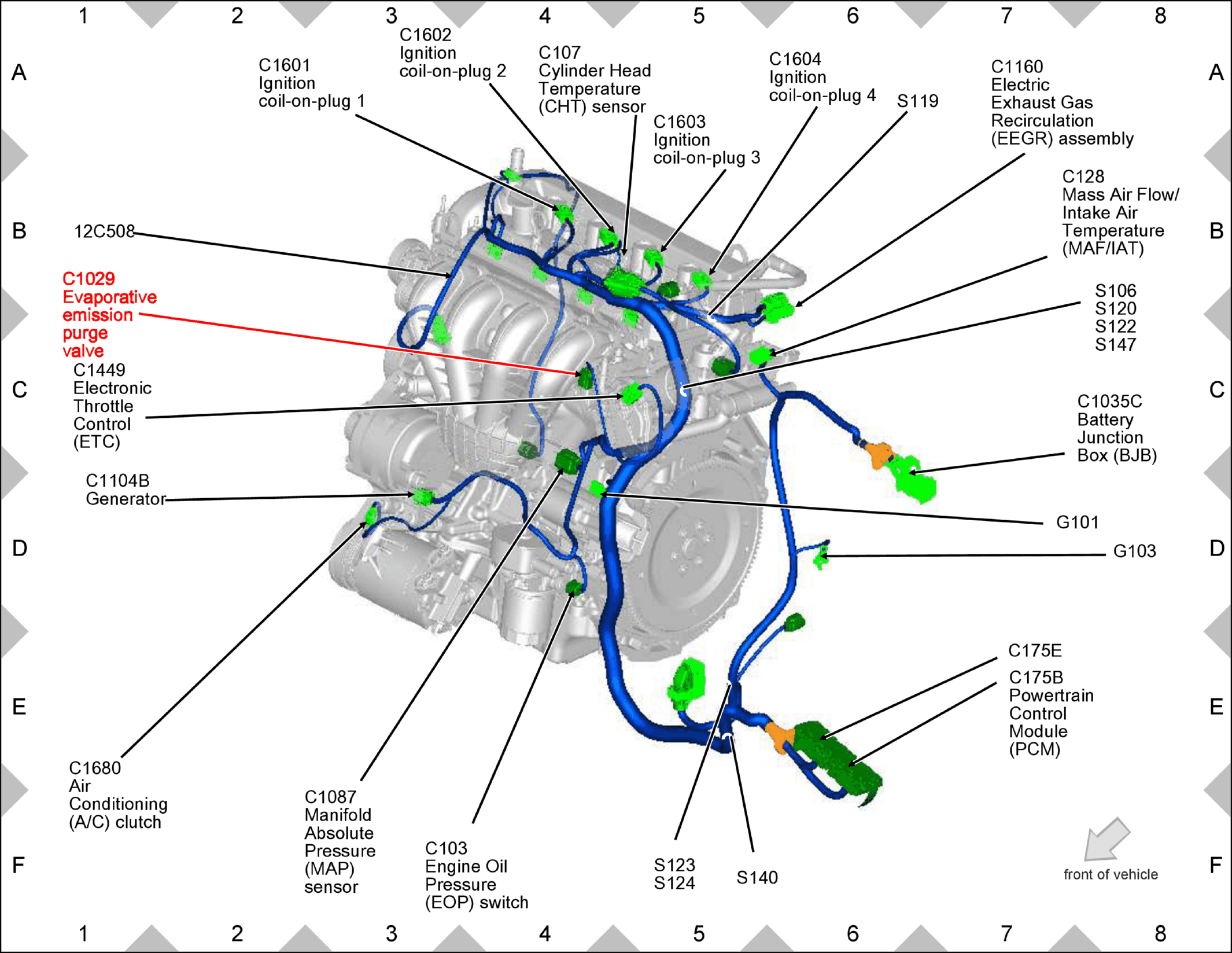

Fig 1: Evaporative Emission Purge Valve Component Location (2.5L)

GFDW64177

Courtesy of FORD MOTOR COMPANY
