Evaporative Emission Canister Purge Valve (1.0L)

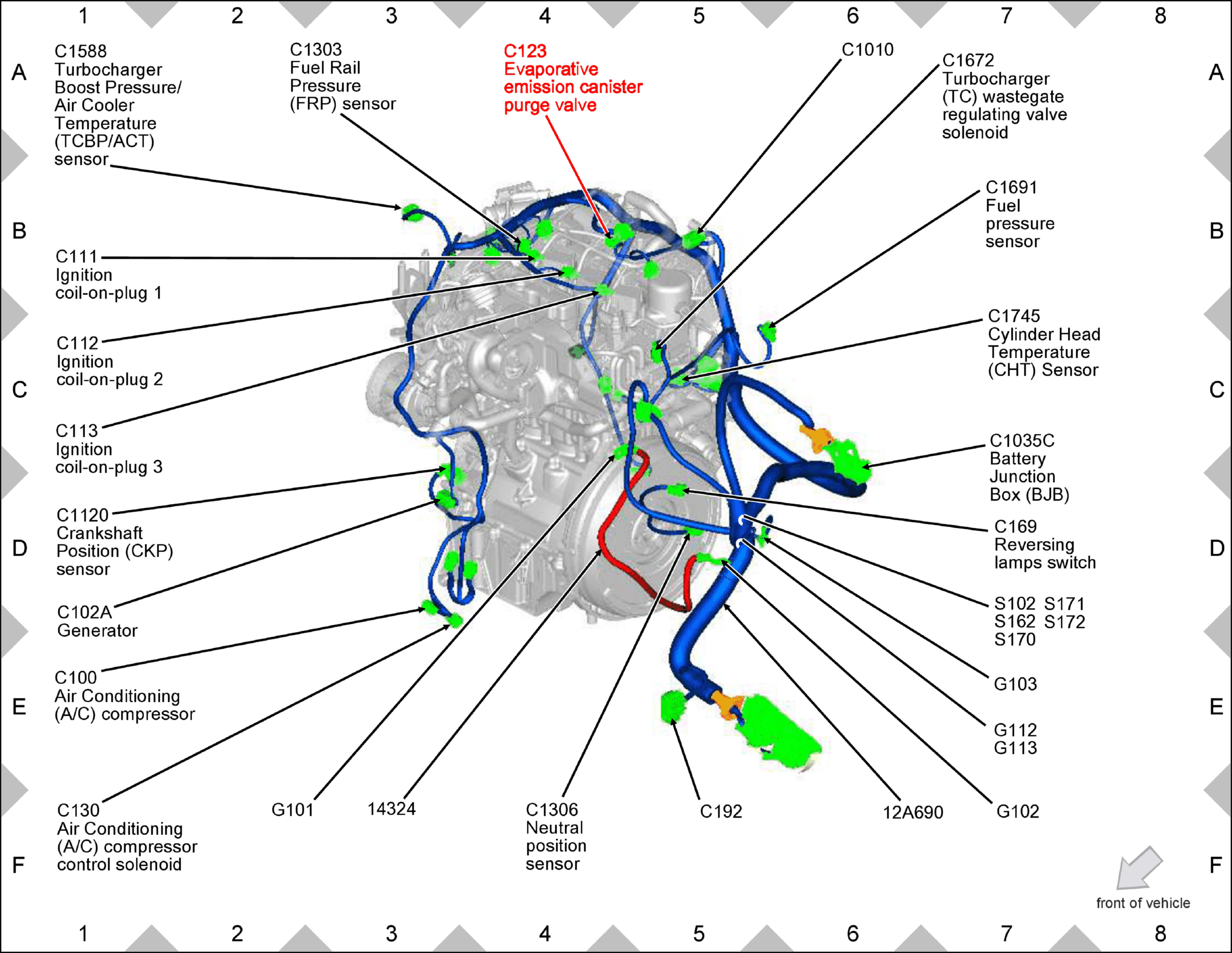

Fig 1: Evaporative Emission Canister Purge Valve Component Location (1.0L)

GFDW64175

Courtesy of FORD MOTOR COMPANY
