Crankshaft Front Seal
>>
Removal
Crankshaft Front Seal: Removal
1.
Remove the crankshaft pulley. Refer to:
Crankshaft Pulley
.
2.

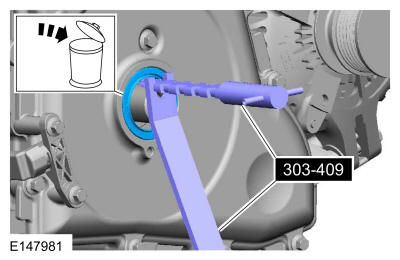

Using the special tool, remove and discard the crankshaft front seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
Courtesy of FORD MOTOR COMPANY
