Parking, Rear And License Lamps

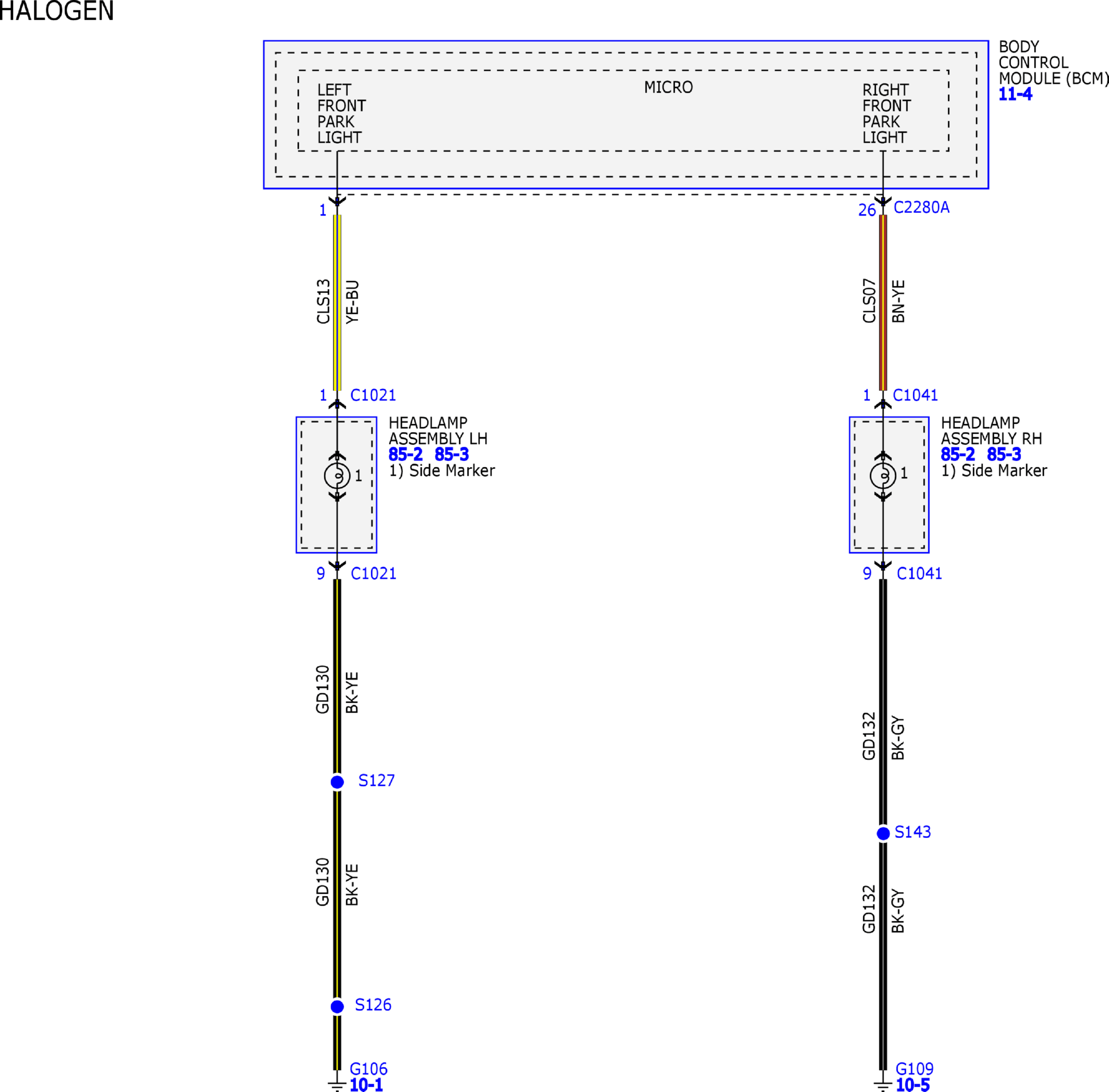

Fig 1: Parking, Rear and License Lamps Wiring Diagram (1 of 2)
GFDW63602Courtesy of FORD MOTOR COMPANY

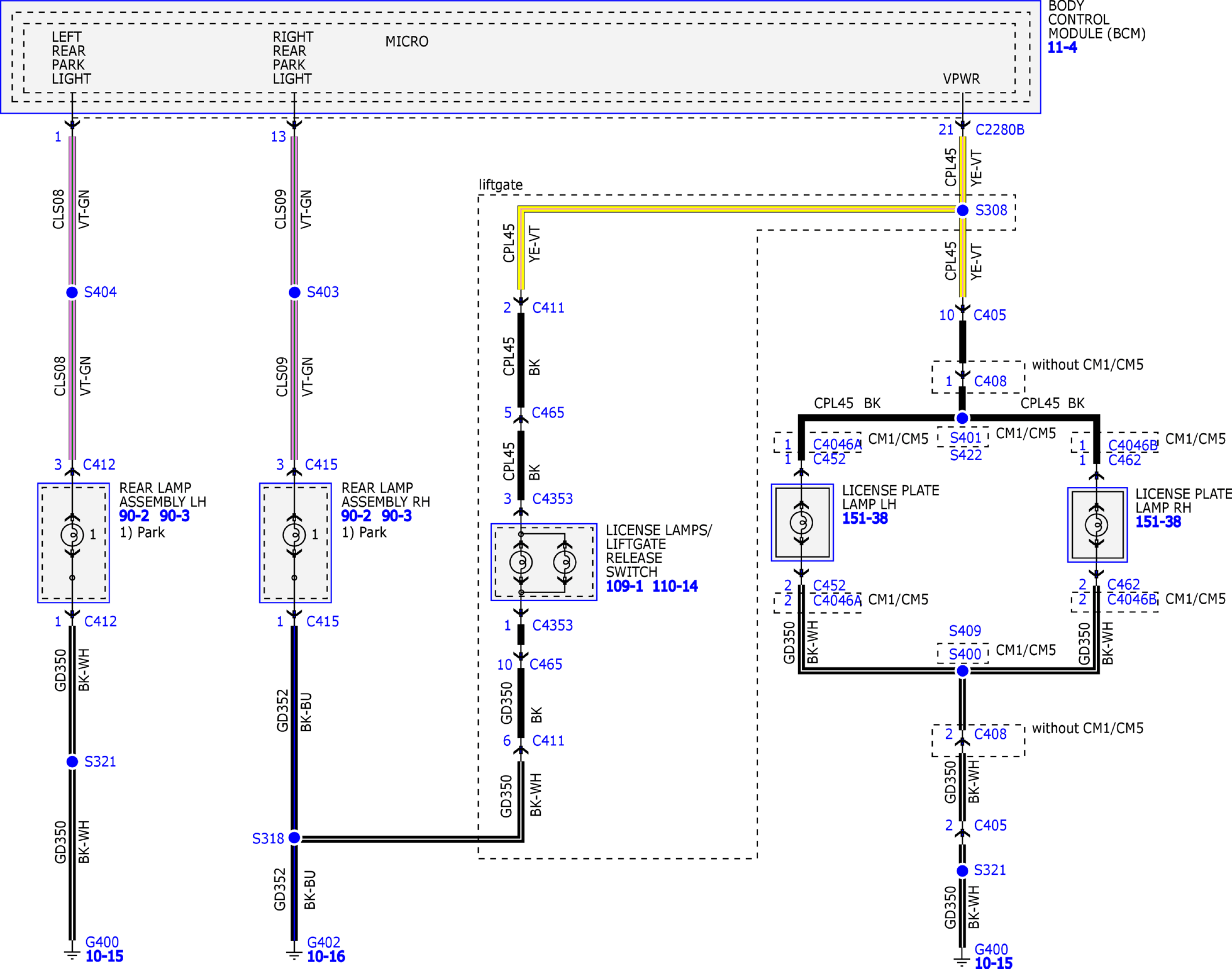

Fig 2: Parking, Rear and License Lamps Wiring Diagram (2 of 2)
GFDW63603Courtesy of FORD MOTOR COMPANY
