Connector End View (C536) - FRONT DOOR SPEAKER LH

Connector: C536

Description

FRONT DOOR SPEAKER LH

Color

Harness

14A584

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME07 (BK)	18	TACHOGRAPH - PULSE (PULSE PER METRE)
2	*	*	Not Used
3	*	*	Not Used
4	RME07 (BK)	18	TACHOGRAPH - SENSOR TACHOGRAPH

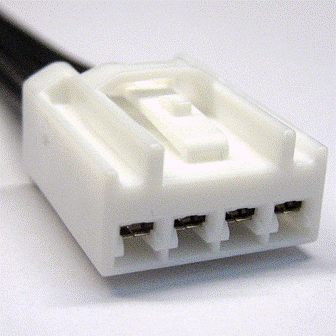

Available Pigtail Kits

Pigtail Kit Part Number

WPT-912

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-HA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Sensor - Oil Temperature

Sensor - Power Steering Pressure

Sensor - Purge Flow

Switch - Gear Shift Select/Neutral Safety
