Connector End View (C3064) - REAR PASSENGER POWER OUTLET SOCKET
Connector: C3064
Description
REAR PASSENGER POWER OUTLET SOCKET
Color
BK
Harness
15K857
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD311 (BK) | 12 | GROUND - TUNNEL # 2ND STUD | |
| 2 | CBP19 (VT-RD) | 12 | FUSE - 19 OR CIRCUIT BREAKER |

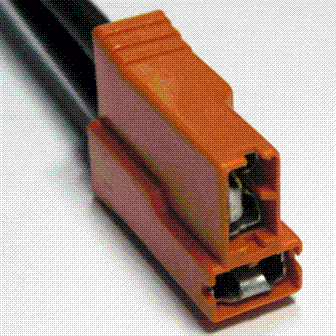

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1158 |
Service Part Number: 3U2Z-14S411-ACAB Gauge: 12 Pin material: Tin Cavities: 2 Vehicle Uses Cigar Lighter Power Point |
