Connector End View (C2439) - RIGHT PANEL DISCHARGE AIR TEMPERATURE SENSOR

Connector: C2439

Description

RIGHT PANEL DISCHARGE AIR TEMPERATURE SENSOR

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VH411 (VT-GN)	22	SENSOR - DISCHARGE TEMP. # RIGHT
2	*	*	Not Used
3	RH105 (GN)	22	SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS)

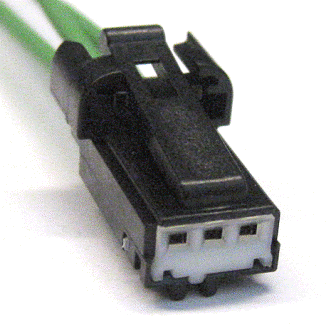

Available Pigtail Kits

Pigtail Kit Part Number

WPT-911

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-LA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Fuse Panel Junction Block

Lamp - Ambient Lighting

Lamp - Front Park

Lamp - Map

Lamp - Park/Turn

Lamp - PRNDL Indicator

Lamp - Roof Marker

Module - Driver Door

Sensor - Speed

Switch - Ambient Lighting Dimmer
