Connector End View (C2286) - PASSENGER AIRBAG DEACTIVATION (PAD) INDICATOR

Connector: C2286

Description

PASSENGER AIRBAG DEACTIVATION (PAD) INDICATOR

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	CR114 (YE-OG)	22	CTRL MOD. - DEPLOY OUTPUT VEMS/TAS
3	CR114 (YE-OG)	22	CTRL MOD. - DEPLOY OUTPUT VEMS/TAS
4	CR114 (YE-OG)	22	CTRL MOD. - DEPLOY OUTPUT VEMS/TAS
5	*	*	Not Used
6	*	*	Not Used

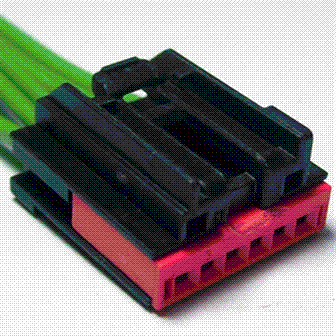

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1242

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MJB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Indicator - Passenger Airbag Deactivation (PADI)

Sensor - EATC In Car Temperature

Switch - Multifunction
