Connector End View (C2024) - FRONT PARKING AID SPEAKER
Connector: C2024
Description
FRONT PARKING AID SPEAKER
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CMP08 (GN-BU) | 22 | CTRL MOD. - PARKING AID # SOUNDER FRONT | |
| 2 | RMP08 (VT-OG) | 22 | CTRL MOD. - PARKING AID # SOUNDER FRONT |
| Available Pigtail Kits | |

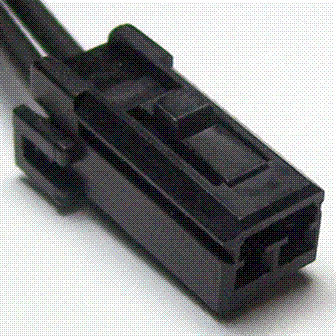

| Pigtail Kit Part Number WPT-1322 |
Service Part Number: 3U2Z-14S411-CSAB Gauge: 18 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Lamp - Dome Lamp - Dome/Map Module - Radio Power Antenna Module - Warning Chime/ Beltminder Solenoid - Brake Shift Park Interlock Speaker - Reverse Park Aid (RPA) |

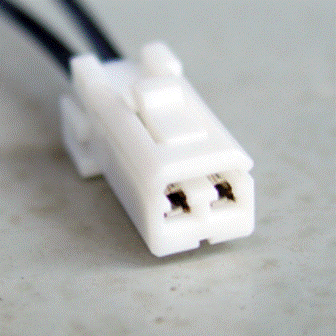

| Pigtail Kit Part Number WPT-675 |
Service Part Number: 3U2Z-14S411-CSAA Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses Lamp - PRNDL Indicator Module - Driver Door Module - Heated Seat (driver) Sensor - Fuel Tank Temperature |
