Connector End View (C1922) - TURBOCHARGER (TC) WASTEGATE REGULATING VALVE SOLENOID

Connector: C1922

Description

TURBOCHARGER (TC) WASTEGATE REGULATING VALVE SOLENOID

Color

Harness

12A690

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB34 (VT-BN)	18	FUSE - 34 OR CIRCUIT BREAKER	1.6L GTDI
2	CE178 (WH-OG)	18	CTRL MOD. - POWERTRAIN # DIESEL LOW PRESSURE WASTEGATE (LPWG)	1.6L GTDI

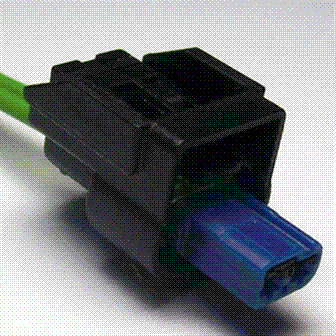

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1275

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AKA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Actuator - Turbocharger Waste Gate
