Connector End View (C1917) - HEATED OXYGEN SENSOR (HO2S) #12

Connector: C1917

Description

HEATED OXYGEN SENSOR (HO2S) #12

Color

Harness

12A690

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB06 (WH-BU)	20	FUSE - 6 OR CIRCUIT BREAKER
2	CE233 (WH-OG)	20	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12)
3	RE242 (GN)	20	CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST OR UNIQUE
4	VE731 (YE-GN)	20	SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12)

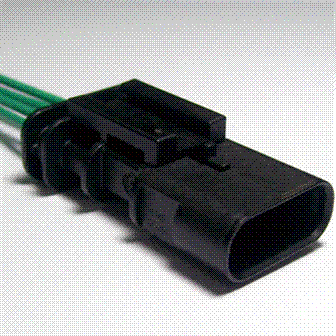

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1381

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-EA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Sensor - Catalyst Monitor
