Connector End View (C1737) - WINDSHIELD HEATED WASHER JET RH

Connector: C1737

Description

WINDSHIELD HEATED WASHER JET RH

Color

Harness

14297

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB37 (WH)	20	FUSE - 37 OR CIRCUIT BREAKER
2	GD132 (BK-YE)	20	GROUND - HEADLAMP PANEL RIGHT # 2ND STUD

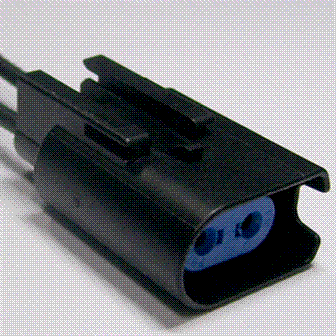

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1359

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-UDB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Diode - Blower Motor Relay

Lamp - CHMSL (Center High Mount Stop Lamp)

Mirror - Sideview

Relay - Blower Motor

Sensor - Speed

Switch - Hood Ajar

Switch - Radio Antenna
