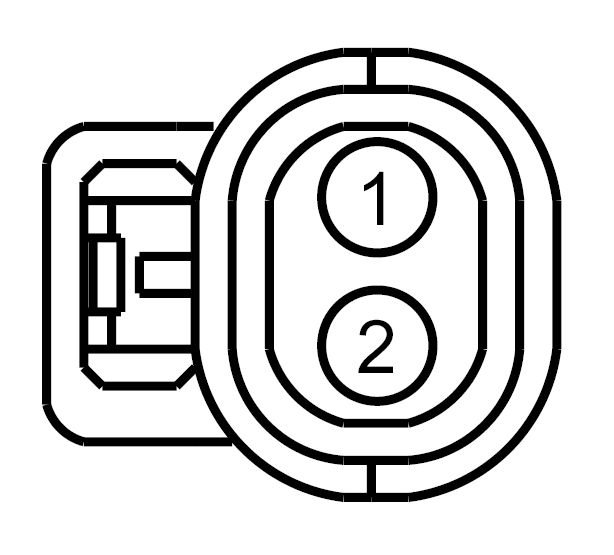

Connector End View (C1682) - EXHAUST GAS RECIRCULATION (EGR) COOLER BYPASS VALVE
Connector: C1682
Description
EXHAUST GAS RECIRCULATION (EGR) COOLER BYPASS VALVE
Color
BK
Harness
12A690
Base Part #
part# N/A
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
CBB33 (WH-BN) |
18 |
FUSE - 33 OR CIRCUIT BREAKER |
| 2 |
CE457 (BN-GN) |
18 |
CTRL MOD. -WAKE UP PCM |
