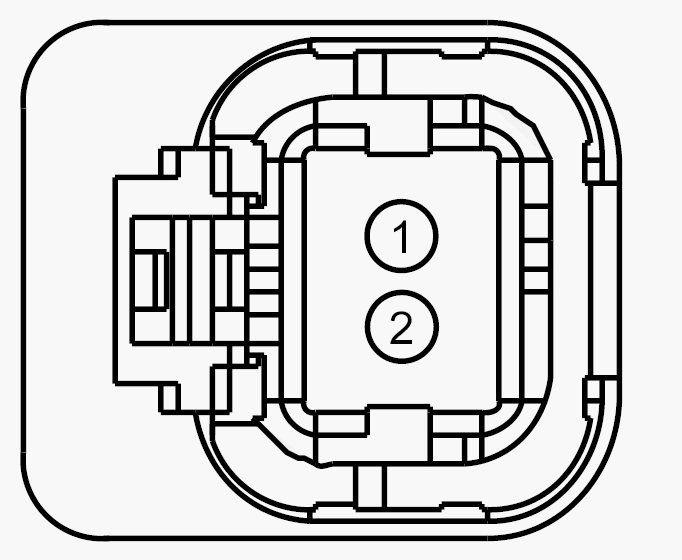

Connector End View (C1674) - COOLANT SHUTOFF SOLENOID VALVE

Connector: C1674

Description

COOLANT SHUTOFF SOLENOID VALVE

Color

Harness

12A690

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE149 (VT-OG)	20	CTRL MOD. - POWERTRAIN # SHUTOFF SOLENOID VALVE
2	CBB34 (VT-BN)	20	FUSE - 34 OR CIRCUIT BREAKER

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1435

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ZA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Solenoid - EGR Cooler Bypass

Valve - Coolant
