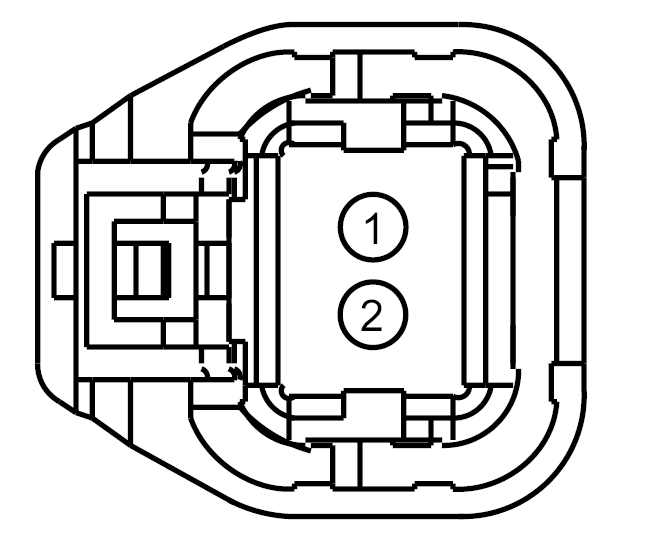

Connector End View (C1672) - TURBOCHARGER (TC) WASTEGATE REGULATING VALVE SOLENOID

Connector: C1672

Description

TURBOCHARGER (TC) WASTEGATE REGULATING VALVE SOLENOID

Color

Harness

12A690

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB16 (VT-GY)	20	FUSE - 16 OR CIRCUIT BREAKER	1.0L GTDI
2	CE844 (BU-RD)	20	RUNNER - INTAKE MANIFOLD CONTROL # MONITOR (IMRCM)	1.0L GTDI

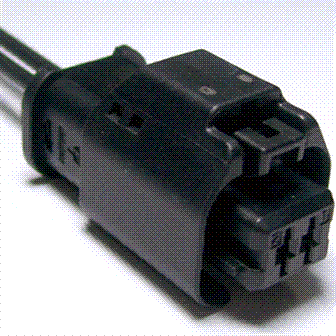

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1370

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-ALA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Actuator - Turbocharger Waste Gate
