Connector End View (C1657) - ENGINE OIL PRESSURE (EOP) SENSOR

Connector: C1657

Description

ENGINE OIL PRESSURE (EOP) SENSOR

Color

Harness

12A690

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE774 (VT-OG)	20	DRIVER - FUEL PUMP MOTOR (FPDM)
2	VE774 (GN-VT)	20	SENSOR - INTERMEDIATE SHAFT SPEED (ISS)
3	ZA106 (WH-BU)	20	TEMPORARY NO. - 6

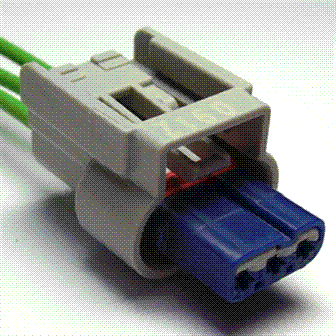

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1308

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AVA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Coil - Ignition

Sensor - Fuel Low Pressure
