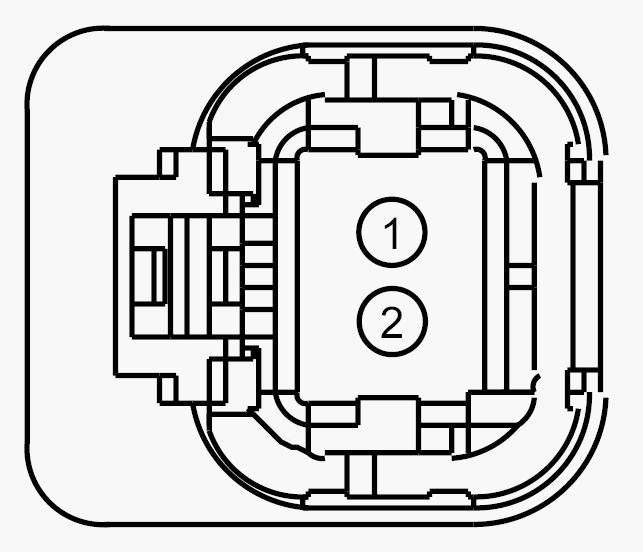

Connector End View (C1257) - FUEL RAIL TEMPERATURE (FRT) SENSOR
Connector: C1257
Description
FUEL RAIL TEMPERATURE (FRT) SENSOR
Color
BK
Harness
12A690
Base Part #
part# N/A
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
VE728 (BU) |
20 |
SENSOR - FUEL RAIL TEMPERATURE (FRT) |
| 2 |
RE232 (VT-WH) |
20 |
CTRL MOD. - POWERTRAIN # FUEL TEMP. SENSOR |
