Connector End View (C337) - SIDE AIR BAG MODULE, PASSENGER

Connector: C337

Description

SIDE AIR BAG MODULE, PASSENGER

Color

Harness

14B723

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RR105 (BK-RD)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE -
2	CR105 (GN-OG)	20	CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE +

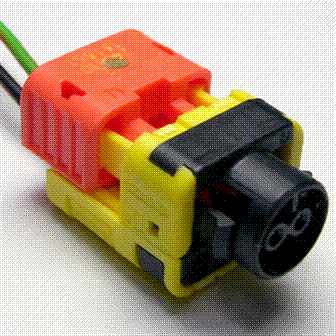

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1228

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BMA

Gauge:

Pin material:

FCI - Airbag

Cavities:

Vehicle Uses

Airbag - Side Curtain
