Connector End View (C168B) - 6F35 TRANSMISSION
Connector: C168B
Description
6F35 TRANSMISSION
Color
BK
Harness
12A690/12C508
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RET24 (BN-BU) | 20 | CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TSS/OSS/TRS) (SIG RTN) | |
| 2 | VET33 (WH-OG) | 20 | SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) + | |
| 3 | LE111 (VT-GN) | 20 | CTRL MOD. - POWERTRAIN # (TSS/OSS/TRS) (VBPWR) |
| Available Pigtail Kits | |

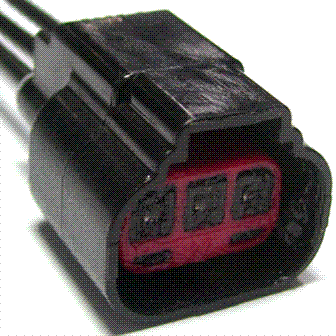

| Pigtail Kit Part Number WPT-990 |
Service Part Number: 8U2Z-14S411-ZB Gauge: 14 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Sensor - Cam Shaft Position Sensor - Crank Shaft Position Sensor - Fuel Tank Pressure Transducer Sensor - Turbine Shaft Speed Switch - Fuel Delivery Pressure |
