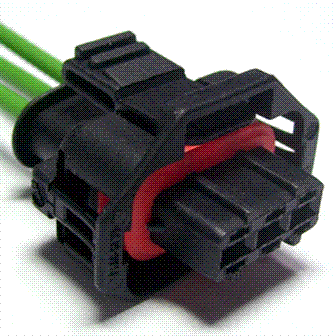

Connector End View (C106) - FUEL RAIL PRESSURE (FRP) SENSOR

Connector: C106

Description

FUEL RAIL PRESSURE (FRP) SENSOR

Color

Harness

12A690/12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE238 (GN-VT)	20	SENSOR - FUEL PRESSURE SENSOR (SIGRTN)
2	VE727 (BU-BN)	20	SENSOR - FUEL LOW PRESSURE (FLP)
3	LE238 (GY)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE (VREF)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1099

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BBA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Fuel Injector

Pump - Fuel Injection

Sensor - Manifold Absolute Pressure (MAP)

Solenoid - Fuel Volume Regulator Control
