Universal Heated Oxygen Sensor (HO2S) (2.5L)
Universal Heated Oxygen Sensor (HO2S) (2.5L)

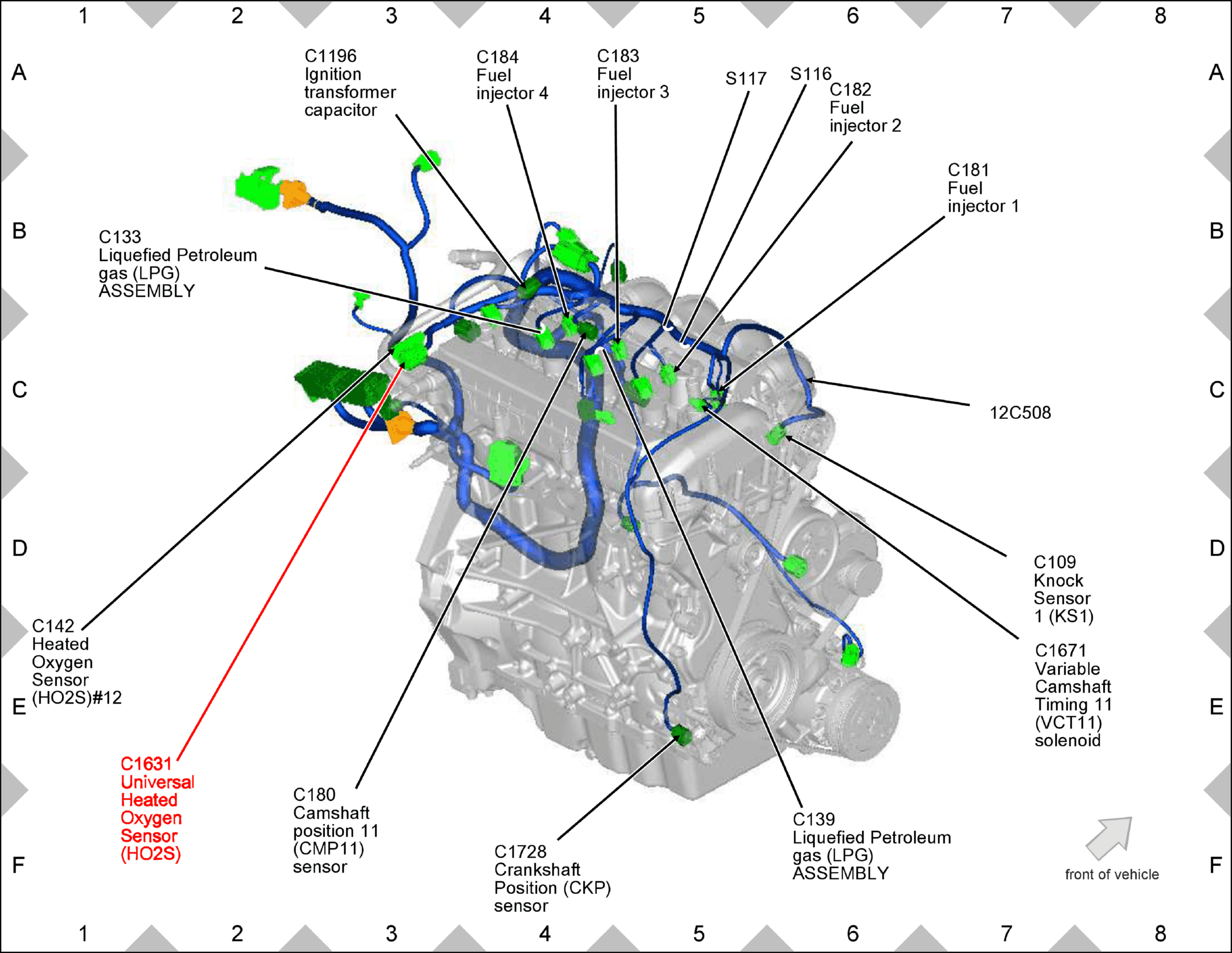

Fig 1: Universal Heated Oxygen Sensor (HO2S) Component Location (2.5L)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
