Seat Cushion Heater, Left Front (Driver Seat)

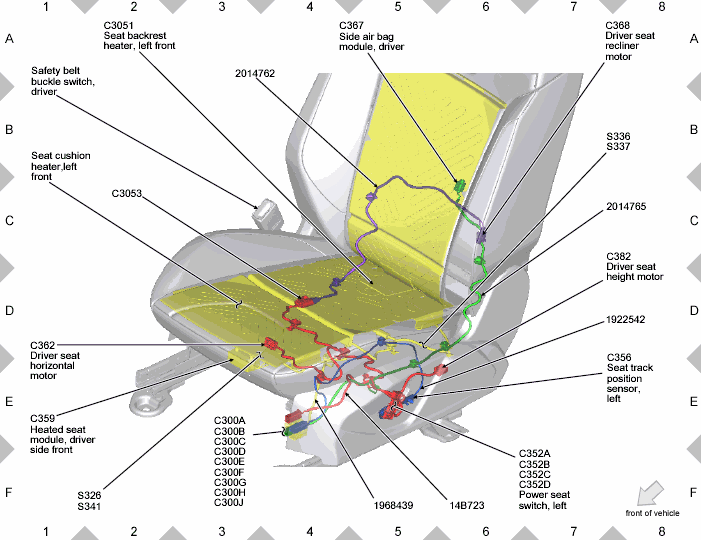

Fig 1: Seat Cushion Heater, Left Front Component Location (Driver Seat)

G00566923

Courtesy of FORD MOTOR COMPANY
