Liquefied Petroleum Gas (LPG) Assembly (2.5L)

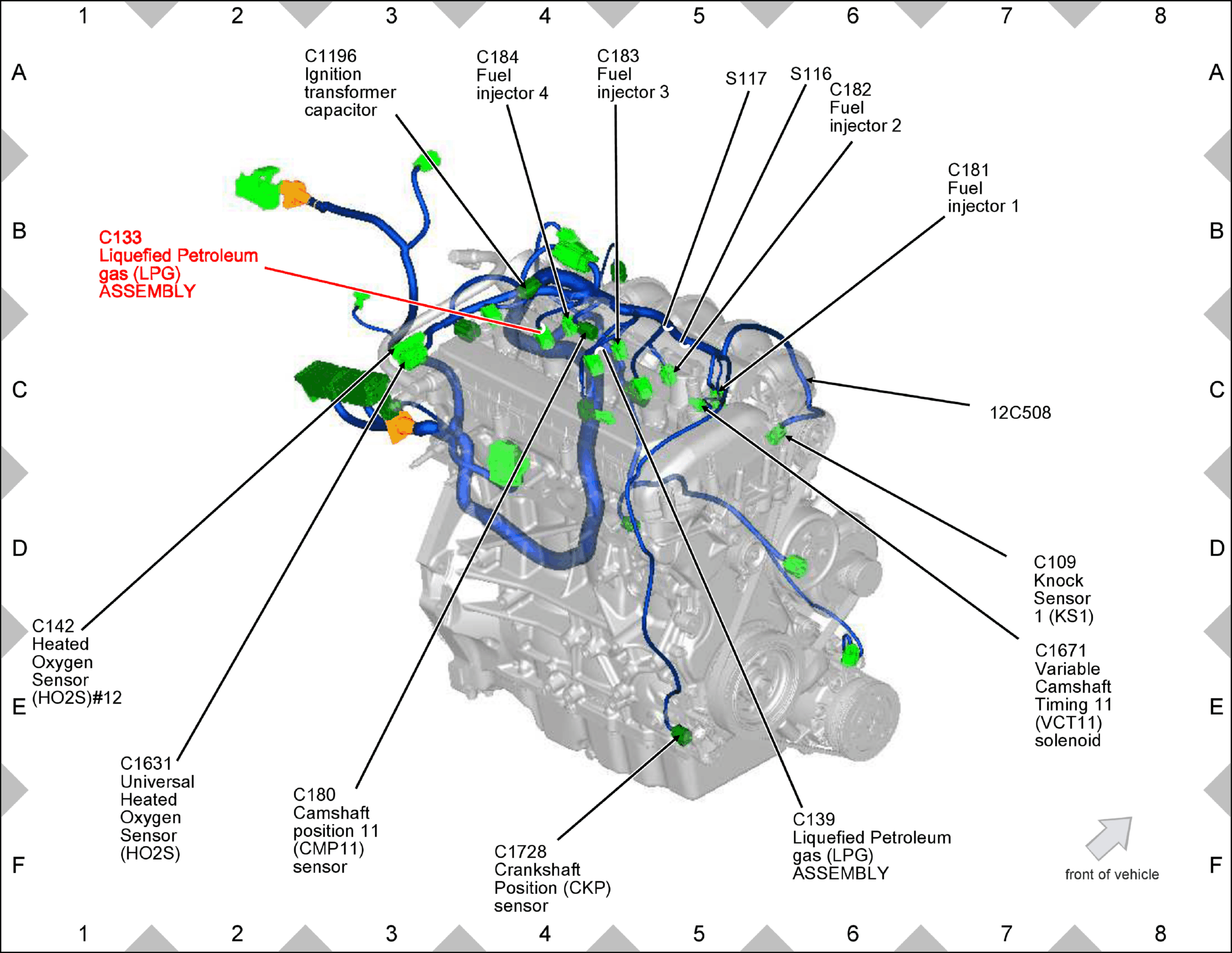

Fig 1: Liquefied Petroleum Gas (LPG) Assembly Component Location (2.5L)
GFDW64301Courtesy of FORD MOTOR COMPANY

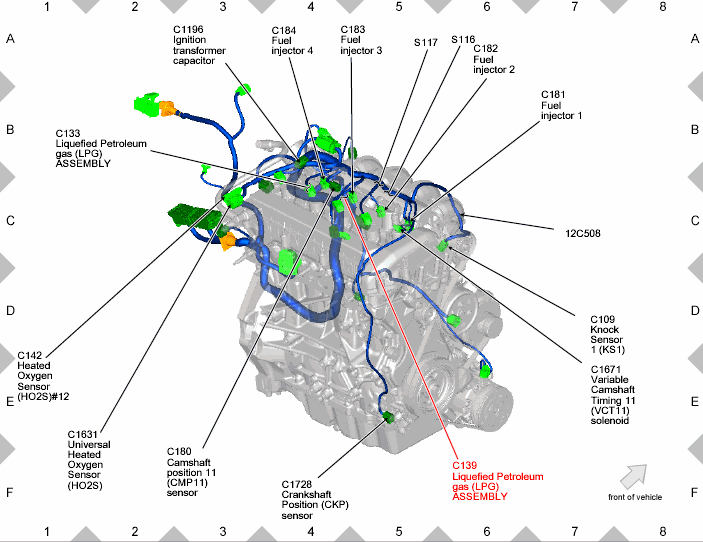

Fig 2: Liquefied Petroleum Gas (LPG) Assembly Component Location (2.5L)
G00566907Courtesy of FORD MOTOR COMPANY
