Exhaust Gas Recirculation (EGR) Valve (1.6L DV6)

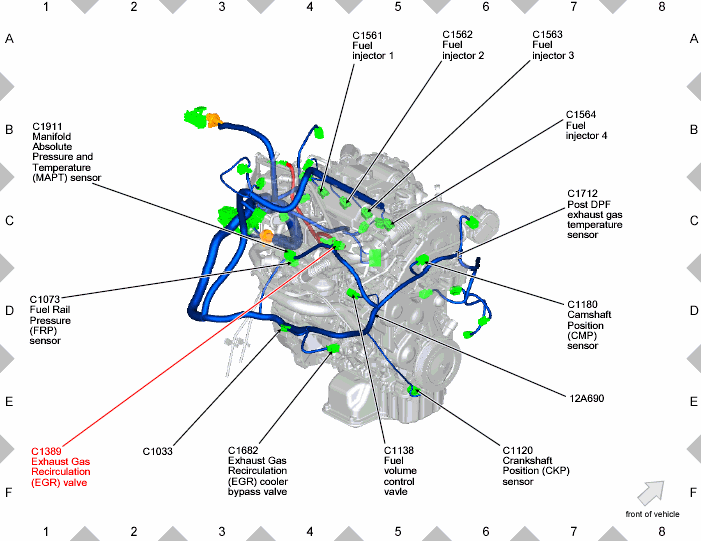

Fig 1: Exhaust Gas Recirculation (EGR) Valve Component Location (1.6L DV6)

G00566905

Courtesy of FORD MOTOR COMPANY
