Coolant Shutoff Solenoid Valve (1.6L GTDI)

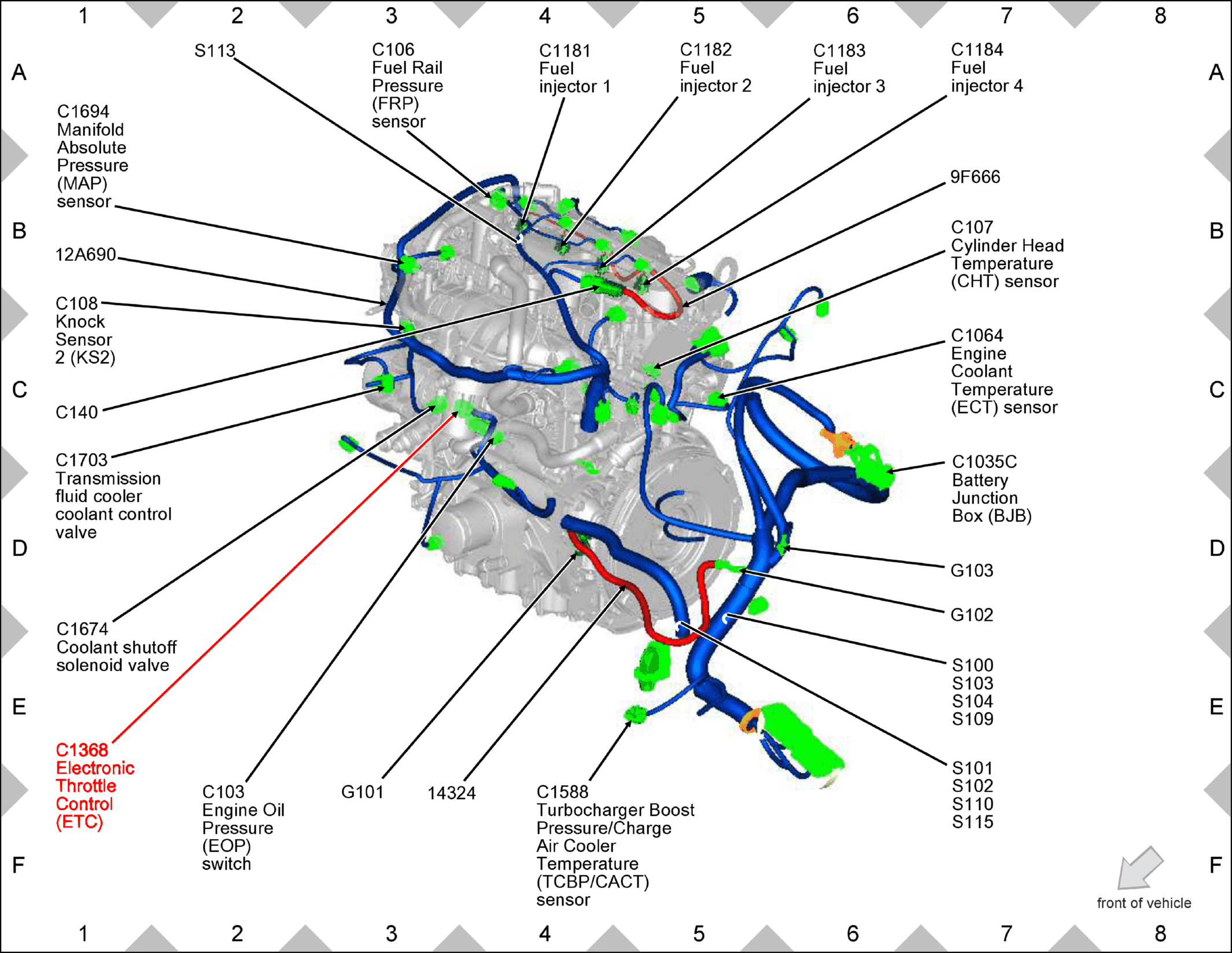

Fig 1: Coolant Shutoff Solenoid Valve Component Location (1.6L GTDI)

GFDW64129

Courtesy of FORD MOTOR COMPANY
