Auxiliary Junction Box (AJB) Rear Of Right Rear Wheel Well

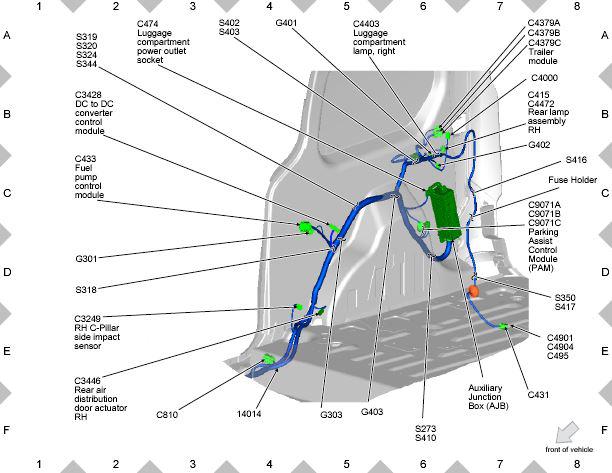

Fig 1: Auxiliary Junction Box (AJB) Rear Of Right Rear Wheel Well Components Location

G00571578

Courtesy of FORD MOTOR CO.
