Air Conditioning (A/C) Clutch (1.5L DV5)
Air Conditioning (A/C) Clutch (1.5L DV5)

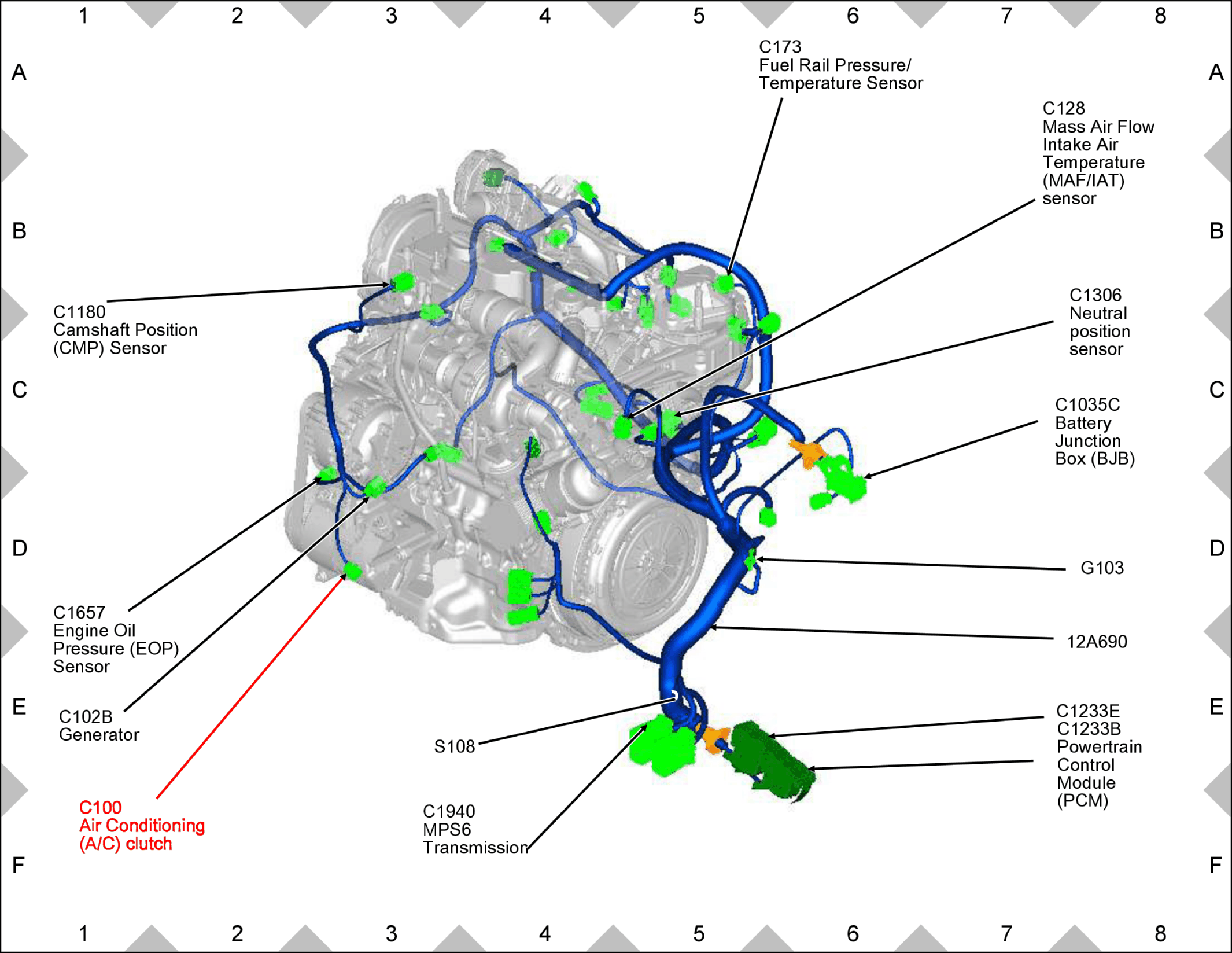

Fig 1: Air Conditioning (A/C) Clutch Component Location (1.5L DV5)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
