Parking Brake Cable: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 2.
- 1.
Remove the parking brake cable adjustment nut lock nut.
- 2.
Loosen the parking brake cable adjustment nut.
- 1.
- 3.
Remove the wheel and tire. Refer to: Wheel and Tire .
- 4.

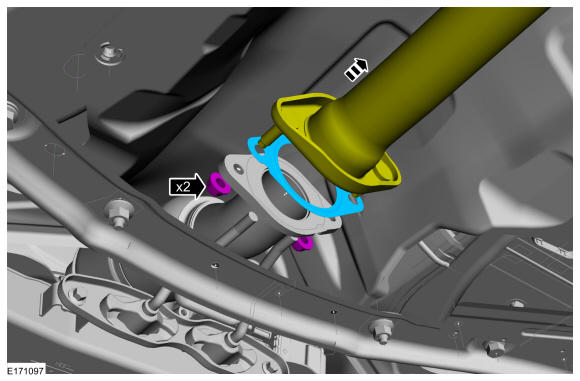

Remove the nuts, separate the exhaust pipe from the catalytic converter and remove the gasket.Torque: 35 lb.ft (48 Nm)
- 7.
- 1.

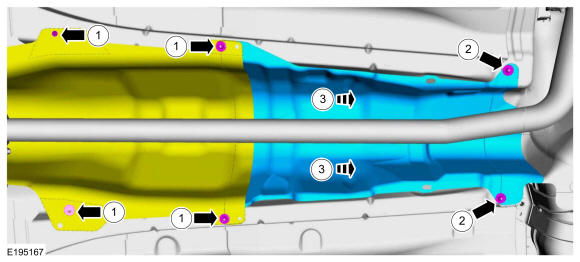

Remove the nuts and lower the forward exhaust heat shield.
- 2.
Remove the rearward exhaust heat shield nuts.
- 3.
Slide the rearward exhaust heat shield back and remove the rearward exhaust heat shield.
- 1.
- 9.NOTE: Note the position of the components before removal.
- 1.

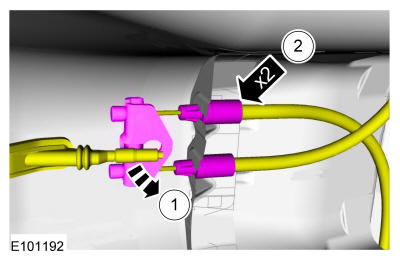

Rotate the equalizer and disconnect the front cable and equalizer assembly.
- 2.
Push inward on the 2 tabs and detach the LH and RH cables from the bracket.
- 1.
- 10.
On both sides.- 1.

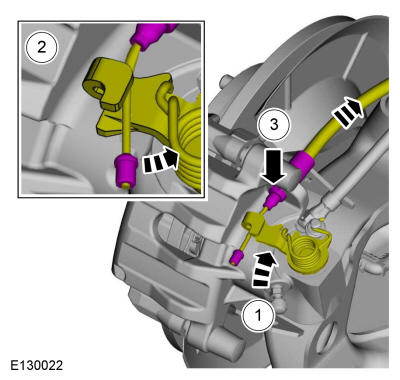

Rotate the parking brake cable lever.
- 2.
Push outwards and disconnect the parking brake cable from the brake caliper lever.
- 3.
Push inwards on the tab, detach the parking brake cable from the brake caliper bracket.
- 1.
- 11.
Detach the parking brake cable retainers. Remove the bracket bolts, nuts and the parking brake cable.
