Brake Pedal and Bracket - LHD FWD: Removal

• 1.

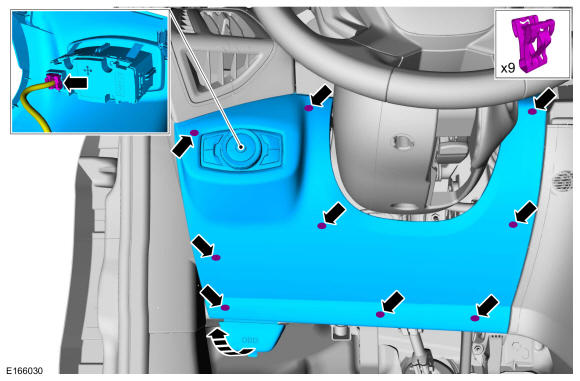

  Pull outward the steering column opening cover detaching the clips.

• 2.

  Disconnect the headlamp switch electrical connector and remove the steering column opening cover.

• 1.


  NOTE: Make sure that the brake pedal remains in the rest position.

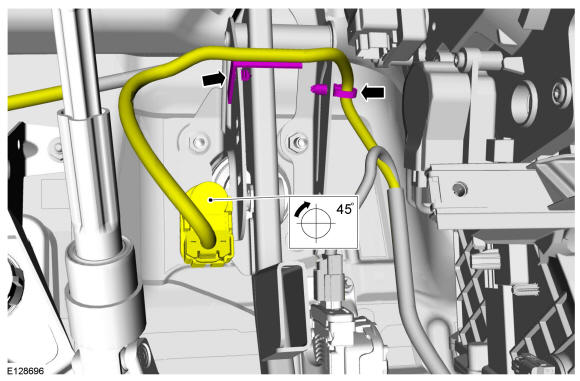

  Detach the harness retainers.

• 2.

  Rotate the brake switch at 45 ° and position the brake switch and wiring aside.

Torque: 71 lb.in (8 Nm)

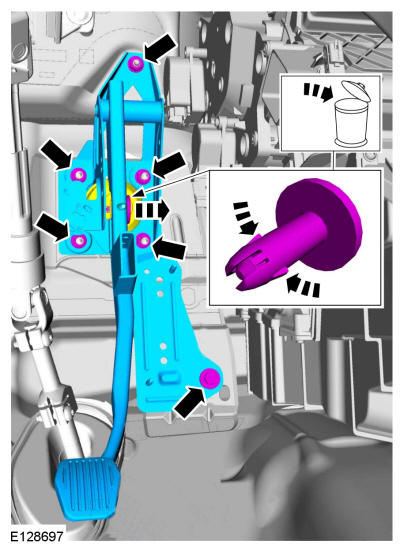

• Remove and discard the booster push rod clevis-locking pin.

• Remove the nuts, the bolt and the brake pedal and bracket.
