Active Grille Shutter - 1.6L EcoBoost (110kW/150PS) - Sigma/1.6L EcoBoost (132kW/180PS) - Sigma: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. 1.

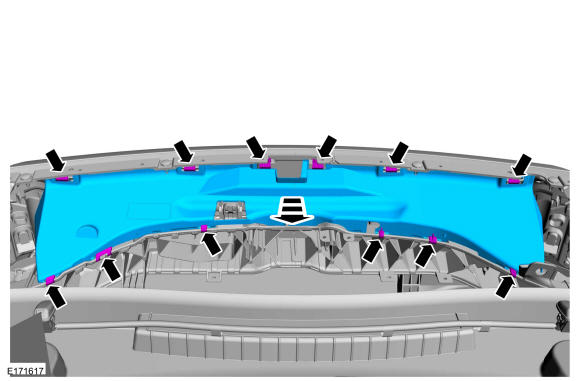

   Release the retainers and remove the radiator sight shield.

Courtesy of FORD MOTOR COMPANY

1. 2.

   Remove the CAC. Refer to: Charge Air Cooler (CAC) .

1. 3.

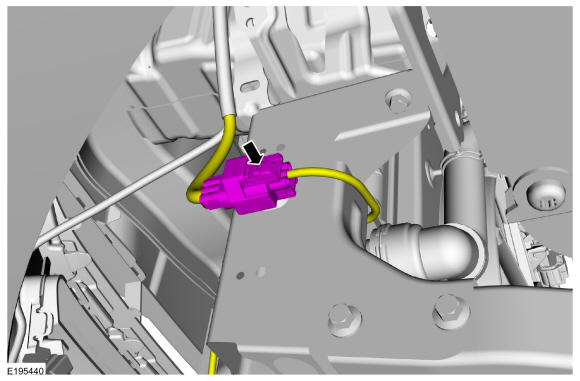

   Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

1. 4.

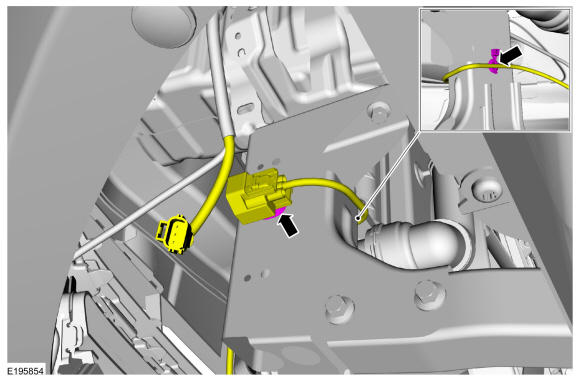

   Detach the wire harness retainers and position the wire harness aside.

Courtesy of FORD MOTOR COMPANY

1. 5.



   1. 1.

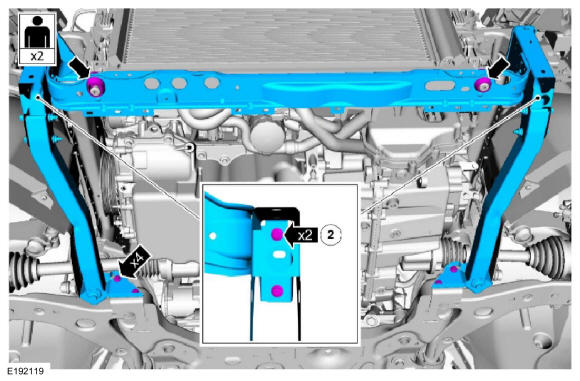

      Remove the bolts and the front subframe.

      Torque: 18 lb.ft (25 Nm)

   1. 2.

      Remove the lower radiator insulators.

Courtesy of FORD MOTOR COMPANY

1. 6.

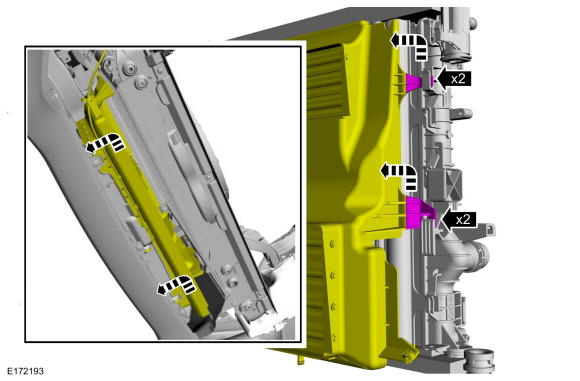

   Release the tabs and position aside the active grille shutter.

Courtesy of FORD MOTOR COMPANY

1. 7.

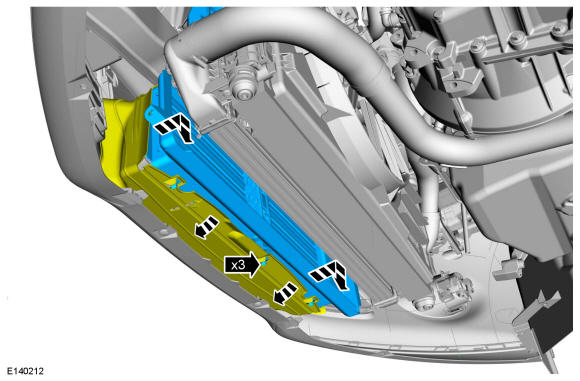

   Release the clips and position the lower air deflector toward the front bumper. Remove the active grille shutter.

Courtesy of FORD MOTOR COMPANY
