Rear Overhead Console - Vehicles With: Metal Roof Panel: Removal

NOTE: Removal steps in this procedure may contain installation details.

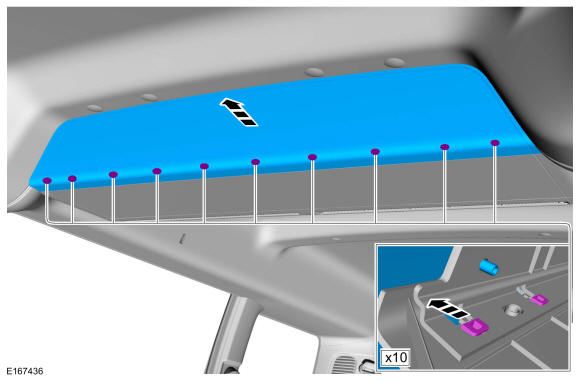

• 1.

  Release the tabs and remove the mid-vehicle overhead stowage console.

Courtesy of FORD MOTOR COMPANY

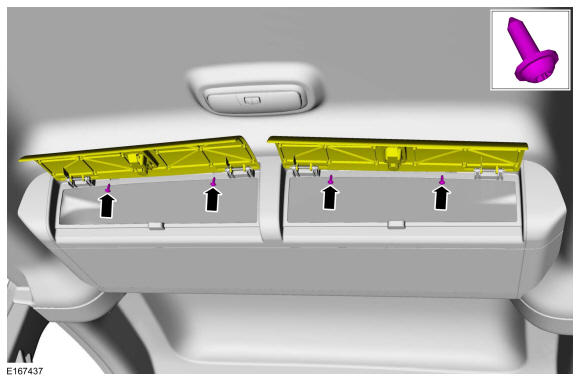

• 2.

  Open the storage compartment doors and remove the retainers.

Courtesy of FORD MOTOR COMPANY

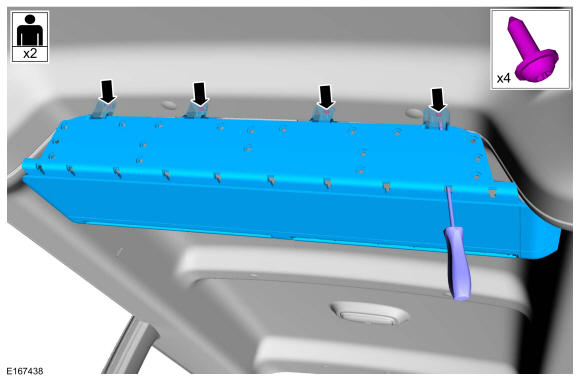

• 3.

  Remove the retainers and the storage compartment.

Courtesy of FORD MOTOR COMPANY
