Front Parking Aid Speaker: Removal

  1. 1.

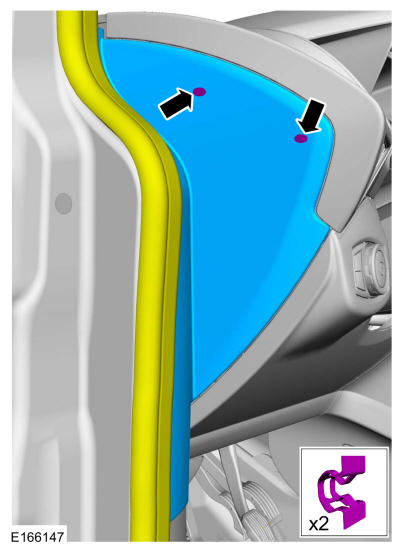

    Position aside the weatherstrip, release the clips and remove the side trim panel.
GFD150716Courtesy of FORD MOTOR COMPANY

  1. 2.

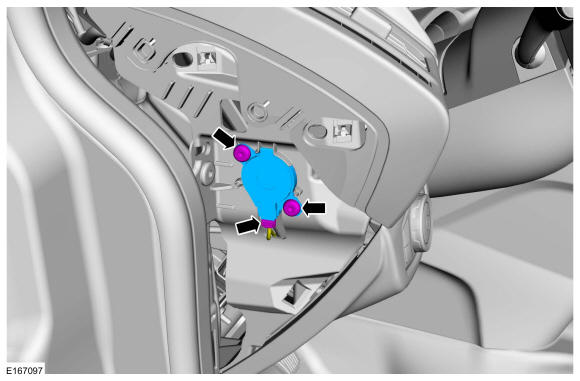

    • Disconnect the front parking aid speaker electrical connector.
    • Remove the screws and the front parking aid speaker.
GFD150717Courtesy of FORD MOTOR COMPANY
