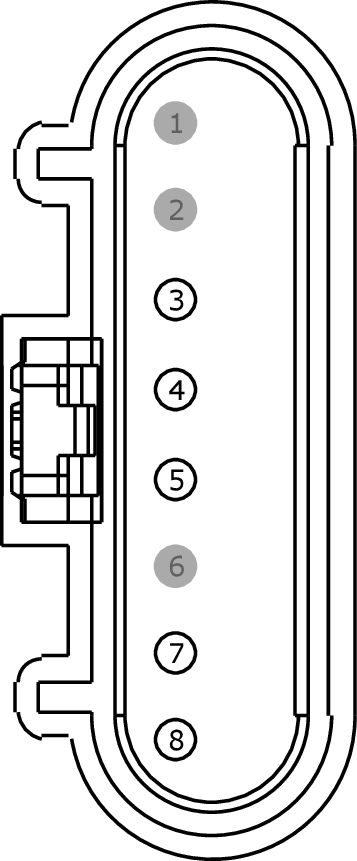

Connector End View (C525) - FRONT DOOR LATCH RELEASE MOTOR LH
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C525
Description
FRONT DOOR LATCH RELEASE MOTOR LH
Color
Harness
14631
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | CPL26 (GN) | 22 | SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR | Fusion |
| 3 | CPL26 (GN-VT) | 22 | SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR | MKZ |
| 4 | CPL30 (BU-BN) | 22 | SWITCH - LATCH DRIVER OR LEFT FRONT # UNLOCK | |
| 5 | RPL61 (BN-GN) | 22 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER | |
| 6 | * | * | Not Used | |
| 7 | CPL11 (GY-BN) | 14 | CTRL MOD. - DOOR LOCK # ALL LOCK | Fusion |
| 7 | CPL11 (GY) | 14 | CTRL MOD. - DOOR LOCK # ALL LOCK | MKZ |
| 8 | CPL51 (BU) | 14 | CTRL MOD. - DOOR LOCK # DRIVER UNLOCK | MKZ |
| 8 | CPL51 (BU-GN) | 14 | CTRL MOD. - DOOR LOCK # DRIVER UNLOCK | Fusion |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1366 |
Service Part Number: 3U2Z-14S411-MBB Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Module - Liftgate Switch - Door Ajar / Interior Lamp Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Sliding Door Contact |
