Connector End View (C487) - REVERSING LAMP LH
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C487
Description
REVERSING LAMP LH
Color
Harness
17N400
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | CLS05 (BU-GY) | 22 | CTRL MOD. - PARK LAMPS 1 | |
| 3 | CLS28 (BU-WH) | 22 | CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC) | |
| 4 | GD347 (BK-VT) | 22 | GROUND - PILLAR C OR QUARTER PANEL LEFT |

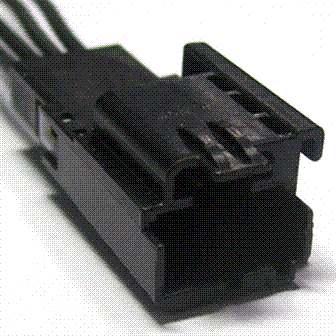

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1041 |
Service Part Number: 9U2Z-14S411-AJA Gauge: 18 Pin material: Tin Cavities: 4 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Switch - Deck Lid / Lift Gate Ajar |
