Connector End View (C362) - DRIVER SEAT HORIZONTAL MOTOR
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C362
Description
DRIVER SEAT HORIZONTAL MOTOR
Color
Harness
14D231
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPS01 (GN-BU) | 16 | CTRL MOD. - DRIVER SEAT SLIDE FORWARD | with memory |
| 1 | CPS01 (GN-BU) | 14 | CTRL MOD. - DRIVER SEAT SLIDE FORWARD | with memory |
| 1 | CPS23 (GN-VT) | 14 | SWITCH - SEAT ADJUST. DRIVER FORWARD | without memory |
| 2 | RPS12 (GN-OG) | 20 | CTRL MOD. - DRIVER SEAT SENSORS RECLINE - | with memory |
| 2 | RPS12 (YE-VT) | 20 | CTRL MOD. - DRIVER SEAT SENSORS RECLINE - | without memory |
| 3 | CPS06 (GN-WH) | 16 | CTRL MOD. - DRIVER SEAT SLIDE REARWARD | with memory |
| 3 | CPS06 (GN-WH) | 14 | CTRL MOD. - DRIVER SEAT SLIDE REARWARD | with memory |
| 3 | CPS28 (GN) | 14 | SWITCH - SEAT ADJUST. DRIVER REARWARD | without memory |
| 4 | VPS09 (BN-BU) | 20 | SENSOR - DRIVER SEAT SLIDE FORWARD/REARWARD |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1350 |

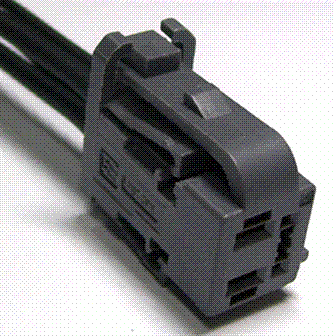

Service Part Number: DU2Z-14S411-UA Gauge: 16 20 Pin material: Tin Cavities: 4 Vehicle Uses Motor - Power Seat Track Motor - Seat Height (Front) |
