Connector End View (C319) - CIGAR LIGHTER
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C319
Description
CIGAR LIGHTER
Color
Harness
14B079
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBB10 (YE-RD) | 16 | FUSE - 10 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | GD214 (BK-BU) | 16 | GROUND - INSTRUMENT PANEL STRUCTURE |

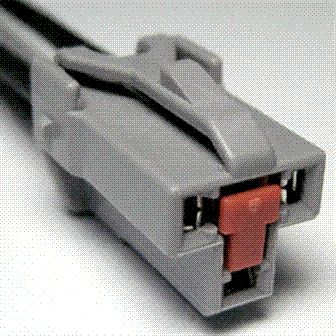

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1160 |
Service Part Number: 3U2Z-14S411-SJB Gauge: 12 Pin material: Tin Cavities: 3 Vehicle Uses Cigar Lighter Lamp - Ash Tray Power Point |
