Connector End View (C314) - INLINE
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Inline C314
Description
INLINE
Color
Base Part #
Service Pigtail
See Below

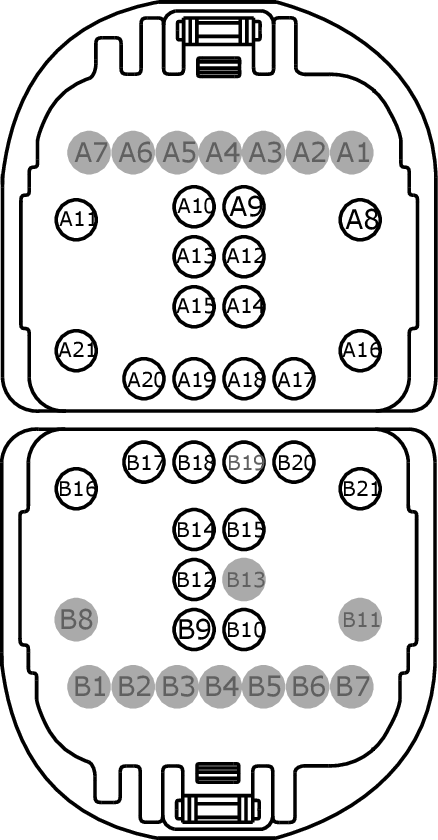

MALE
Harness 14632

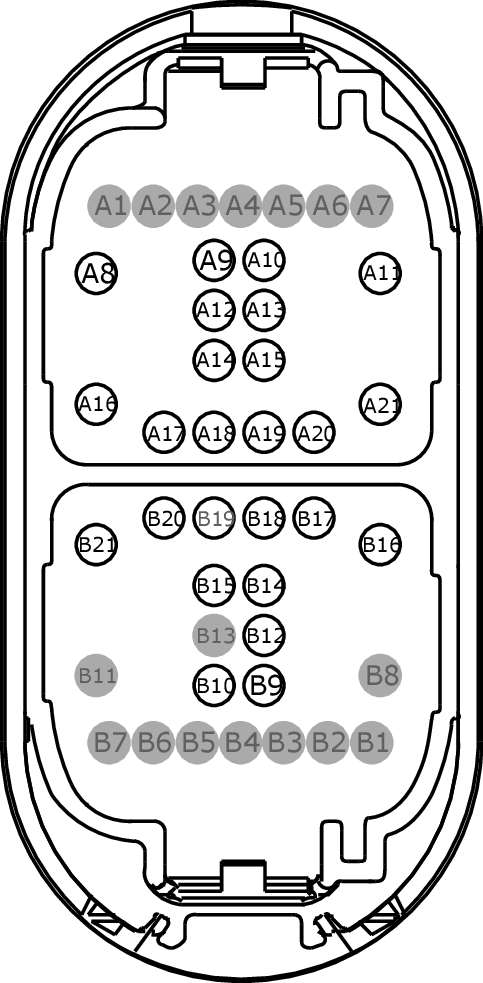

FEMALE
Harness 14A005
| Pin | Circuit | Gauge | Qualifier |
| A1 | * | * | |
| A2 | * | * | |
| A3 | * | * | |
| A4 | * | * | |
| A5 | * | * | |
| A6 | * | * | |
| A7 | * | * | |
| A8 | CPL13 (BN-GN) | 14 | |
| A9 | CPL39 (YE) | 22 | |
| A10 | RPK39 (VT-OG) | 20 | 14A005 |
| A10 | RPK39 (VT-OG) | 22 | |
| A11 | CPL11 (GY-BN) | 14 | |
| A12 | CPL89 (BN) | 22 | 14632 |
| A12 | CPL89 (BN-BU) | 22 | 14A005 |
| A12 | VME83 (GN-VT) | 18 | 14632 |
| A12 | VME83 (GN-VT) | 20 | 14A005 |
| A13 | RME83 (YE-VT) | 18 | 14632 |
| A13 | RME83 (YE-VT) | 20 | 14A005 |
| A13 | VPK47 (BU) | 22 | 14632 |
| A13 | VPK47 (VT) | 22 | 14A005 |
| A14 | CPL42 (GY-YE) | 22 | |
| A15 | VDN10 (BN) | 22 | 14632 |
| A15 | VDN10 (BN-VT) | 20 | 14A005 |
| A15 | VDN10 (BN-VT) | 22 | |
| A16 | SBP30 (BN-RD) | 10 | 14632 |
| A16 | SBP30 (BN-RD) | 12 | |
| A17 | VME12 (BN-WH) | 18 | |
| A17 | VME12 (BN-WH) | 20 | 14A005 |
| A18 | RME12 (BN-BU) | 18 | |
| A18 | RME12 (BN-BU) | 20 | 14A005 |
| A19 | VME40 (BU-WH) | 20 | |
| A20 | RME40 (VT-WH) | 20 | |
| A21 | GD383 (BK-WH) | 10 | 14632 |
| A21 | GD383 (BK-WH) | 12 | |
| B1 | * | * | |
| B2 | * | * | |
| B3 | * | * | |
| B4 | * | * | |
| B5 | * | * | |
| B6 | * | * | |
| B7 | * | * | |
| B8 | * | * | |
| B9 | VLN73 (GY-BN) | 22 | |
| B10 | CBX07 (GN-RD) | 22 | |
| B11 | * | * | |
| B12 | VLN04 (VT-GY) | 22 | |
| B13 | * | * | |
| B14 | VPK47 (VT) | 22 | |
| B15 | CPL77 (BU-GN) | 22 | 14632 |
| B15 | CPL77 (VT-BN) | 22 | 14A005 |
| B16 | CPL11 (GN-BN) | 14 | 14632 |
| B16 | CPL11 (GY-BN) | 14 | 14A005 |
| B17 | CLN25 (VT) | 22 | |
| B18 | CPL89 (BN-BU) | 20 | 14A005 |
| B18 | CPL89 (BN-BU) | 22 | 14632 |
| B19 | * | * | |
| B20 | VPK03 (YE) | 22 | |
| B21 | CPL13 (BN-GN) | 14 |

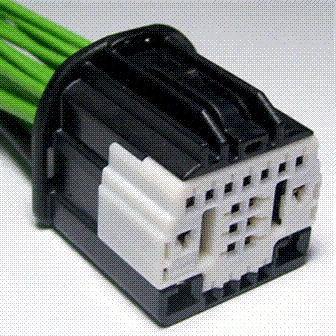

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1425 |
Service Part Number: FU2Z-14S411-RA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
