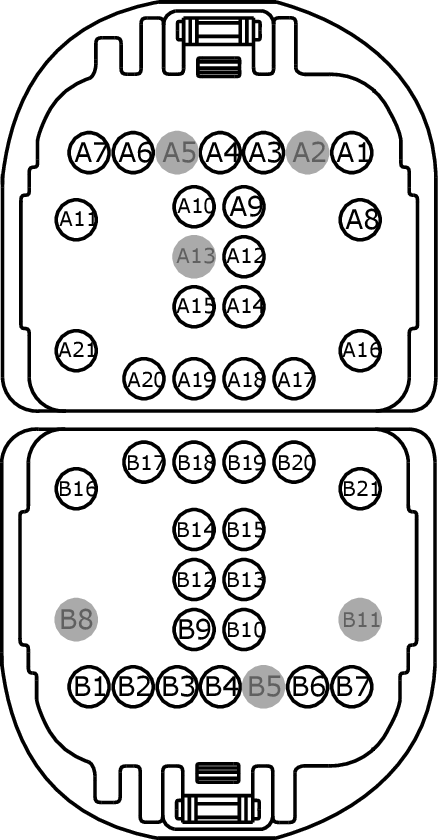

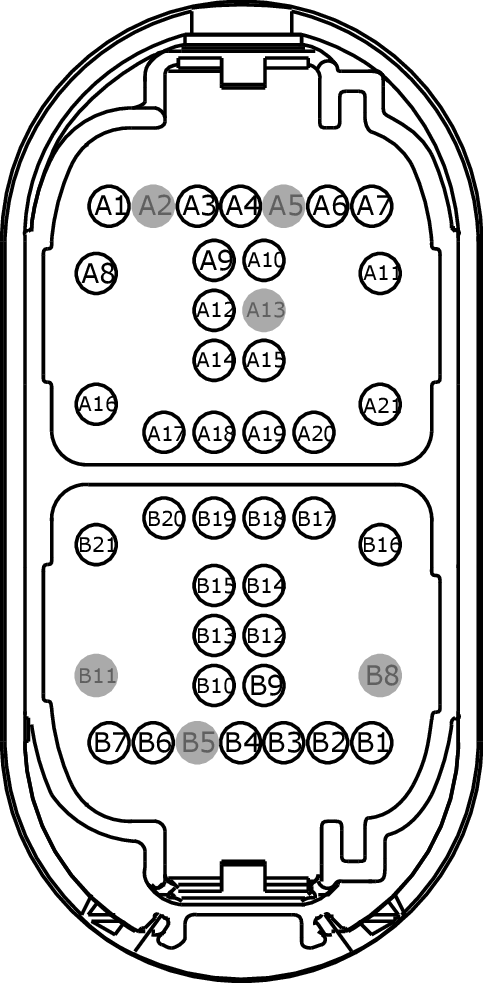

Connector End View (C311) - INLINE
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Inline C311
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 14631
FEMALE
Harness 14A005
| Pin | Circuit | Gauge | Qualifier |
| A1 | CPL26 (GN) | 22 | 14631 |
| A1 | CPL26 (GN-VT) | 22 | |
| A2 | * | * | 14A005 |
| A3 | VDB06 (GY) | 22 | 14631 |
| A3 | VDB06 (GY) | 26 | 14A005 |
| A3 | VDB06 (GY-OG) | 22 | 14631 |
| A4 | VDB07 (VT) | 26 | 14A005 |
| A4 | VDB07 (VT-OG) | 22 | 14631 |
| A5 | * | * | 14A005 |
| A6 | VLN04 (VT-GY) | 22 | |
| A7 | CBP23 (BN-YE) | 20 | 14631 |
| A7 | CBP23 (BN-YE) | 20 | 14A005 |
| A7 | CBP23 (BN-YE) | 22 | 14A005 |
| A8 | CPL51 (BU) | 14 | 14631 |
| A8 | CPL51 (BU-GN) | 14 | |
| A8 | CPL51 (GN-BU) | 14 | 14A005 |
| A9 | VR217 (GY) | 20 | 14631 |
| A9 | VR221 (BU-GN) | 20 | 14631 |
| A9 | VR221 (BU-GN) | 22 | 14A005 |
| A10 | RR131 (VT) | 20 | 14631 |
| A10 | RR131 (VT-GY) | 22 | 14A005 |
| A10 | RR135 (GN-BN) | 20 | 14631 |
| A10 | RR135 (GN-BN) | 22 | 14A005 |
| A11 | CPL11 (GY) | 14 | 14631 |
| A11 | CPL11 (GY-BN) | 14 | |
| A12 | CPL24 (YE-BU) | 22 | |
| A12 | CPL30 (BN-BU) | 20 | 14A005 |
| A12 | CPL30 (BU-BN) | 22 | 14631 |
| A13 | * | * | 14A005 |
| A14 | CPL77 (BU-GN) | 22 | 14A005 |
| A14 | CPL77 (GN) | 22 | 14631 |
| A15 | VDN09 (WH) | 22 | 14631 |
| A15 | VDN09 (WH-GN) | 20 | 14A005 |
| A15 | VDN09 (WH-GN) | 22 | |
| A16 | SBP25 (RD) | 10 | 14631 |
| A16 | SBP25 (RD) | 10 | 14A005 |
| A16 | SBP25 (RD) | 12 | 14631 |
| A16 | SBP25 (RD) | 12 | 14A005 |
| A17 | VME07 (WH) | 18 | |
| A18 | RME07 (WH-BN) | 18 | |
| A19 | VME28 (BN-VT) | 18 | 14631 |
| A19 | VME28 (GN-WH) | 20 | 14A005 |
| A20 | RME28 (BN-GN) | 18 | 14631 |
| A20 | RME28 (BU-WH) | 20 | 14A005 |
| A21 | GD382 (BK-GY) | 12 | |
| B1 | VLN73 (GY-BN) | 22 | |
| B1 | VLN73 (YE-GY) | 22 | 14A005 |
| B2 | CBX07 (GN) | 22 | 14631 |
| B2 | CBX07 (GN-RD) | 22 | |
| B3 | SBP10 (RD) | 22 | 14631 |
| B3 | SBP10 (YE-RD) | 20 | 14A005 |
| B3 | SBP10 (YE-RD) | 22 | |
| B4 | RPK39 (VT-OG) | 20 | 14A005 |
| B4 | RPK39 (VT-OG) | 22 | |
| B5 | * | * | 14A005 |
| B6 | VPK39 (GN) | 22 | 14631 |
| B6 | VPK39 (GN-VT) | 22 | |
| B7 | CPL24 (YE-BU) | 22 | |
| B7 | CPL30 (BU-BN) | 20 | 14A005 |
| B7 | CPL30 (BU-BN) | 22 | 14631 |
| B8 | * | * | 14A005 |
| B9 | LRD12 (BU-GY) | 20 | 14A005 |
| B9 | LRD12 (BU-GY) | 22 | |
| B10 | RRD12 (BN) | 20 | 14A005 |
| B10 | RRD12 (BN) | 22 | |
| B11 | * | * | 14A005 |
| B12 | VPK01 (BN) | 22 | 14631 |
| B12 | VPK01 (BN-YE) | 22 | |
| B13 | RPK01 (WH) | 22 | 14631 |
| B13 | RPK01 (WH-GN) | 22 | |
| B14 | VME08 (GN-OG) | 20 | |
| B15 | RME08 (GY-OG) | 20 | |
| B16 | VPK03 (YE) | 22 | |
| B17 | CPK28 (WH) | 22 | 14631 |
| B17 | CPK28 (WH-GN) | 22 | |
| B18 | CPK29 (GY) | 22 | 14631 |
| B18 | CPK29 (GY-BU) | 22 | |
| B19 | CPK30 (VT-GN) | 22 | |
| B20 | CPK31 (YE) | 22 | 14631 |
| B20 | CPK31 (YE-GN) | 22 | |
| B21 | GD382 (BK) | 22 | 14631 |
| B21 | GD382 (BK-GY) | 20 | 14A005 |
| B21 | GD382 (BK-GY) | 22 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1425 |
Service Part Number: FU2Z-14S411-RA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number WPT-1482 |
Service Part Number: GU2Z-14S411-GB Gauge: 14 16 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
