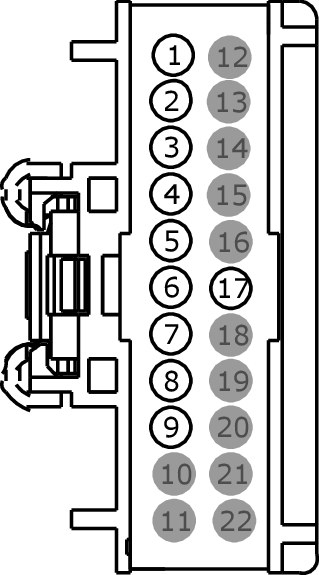

Connector End View (C264) - INLINE
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
InlineC264
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
FEMALE
Harness 14401
FEMALE
Harness 14401
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
VME07 (WH) |
18 |
|
|
2 |
RME07 (WH-BN) |
18 |
|
|
3 |
VME09 (WH-GN) |
18 |
|
|
4 |
RME09 (BN-YE) |
18 |
|
|
5 |
VME10 (WH-VT) |
18 |
|
|
6 |
RME10 (WH-OG) |
18 |
|
|
7 |
VME12 (BN-WH) |
18 |
|
|
8 |
RME12 (BN-BU) |
18 |
|
|
9 |
DME07 (*) |
20 |
|
|
10 |
* |
* |
|
|
11 |
* |
* |
|
|
12 |
* |
* |
|
|
13 |
* |
* |
|
|
14 |
* |
* |
|
|
15 |
* |
* |
|
|
16 |
* |
* |
|
|
17 |
* |
* |
|
|
18 |
* |
* |
|
|
19 |
* |
* |
|
|
20 |
* |
* |
|
|
21 |
* |
* |
|
|
22 |
* |
* |
