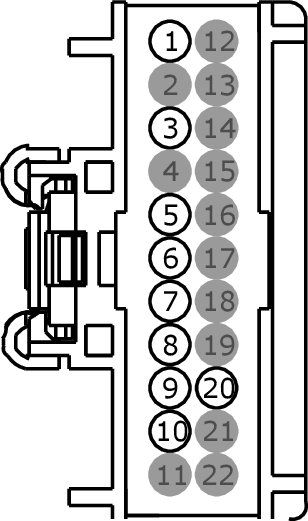

Connector End View (C239) - INLINE
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
InlineC239
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
MALE
Harness 14A005
FEMALE
Harness 14401
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
CBX07 (GN-RD) |
22 |
14A005 |
|
1 |
CBX07 (RD) |
26 |
14401 |
|
2 |
* |
* |
|
|
3 |
VLN04 (VT) |
26 |
14401 |
|
3 |
VLN04 (VT-GY) |
22 |
14A005 |
|
4 |
* |
* |
|
|
5 |
VDB29 (GN) |
22 |
14401 |
|
5 |
VDB29 (GN) |
26 |
|
|
6 |
VDB30 (GN-WH) |
26 |
14A005 |
|
6 |
VDB30 (WH) |
22 |
14401 |
|
6 |
VDB30 (WH) |
26 |
14401 |
|
7 |
VDB25 (GN) |
26 |
14401 |
|
7 |
VDB25 (OG) |
26 |
14A005 |
|
8 |
VDB26 (BU) |
26 |
14A005 |
|
8 |
VDB26 (GY) |
26 |
14401 |
|
9 |
VDB04 (BU) |
26 |
14401 |
|
9 |
VDB04 (BU-WH) |
26 |
14A005 |
|
9 |
VDB04 (WH-BU) |
26 |
14401 |
|
10 |
VDB05 (WH) |
26 |
|
|
11 |
* |
* |
|
|
12 |
* |
* |
|
|
13 |
* |
* |
|
|
14 |
* |
* |
|
|
15 |
* |
* |
|
|
16 |
* |
* |
|
|
17 |
* |
* |
|
|
18 |
* |
* |
|
|
19 |
* |
* |
|
|
20 |
CME36 (GN-VT) |
18 |
14A005 |
|
20 |
CME36 (GN-VT) |
22 |
14401 |
|
21 |
* |
* |
|
|
22 |
* |
* |
