Parking Brake Actuator Motor: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.
Disconnect the electrical connector and detach the wiring retainer.
- 3.NOTE: If there is evidence of brake fluid found in or around the parking brake actuator motor a new brake caliper and actuator motor assembly must be installed.
Remove the bolts and using a twisting motion, remove the parking brake actuator motor.
Torque
: 71 lb.in (8 Nm)
- 4.

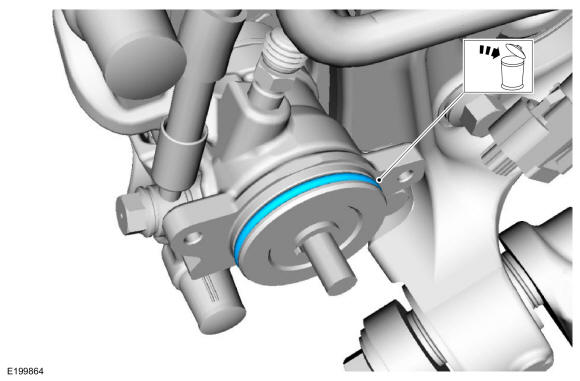

Remove and discard the O-ring.
- 5.

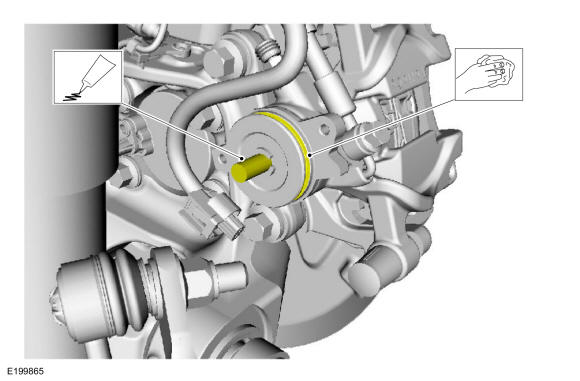

Clean the brake caliper housing O-ring groove and apply the grease supplied with the parking kit.
