Fuel Tank - Hybrid Electric Vehicle (HEV): Installation

WARNING: This page is about a different variant/trim than selected.

1.

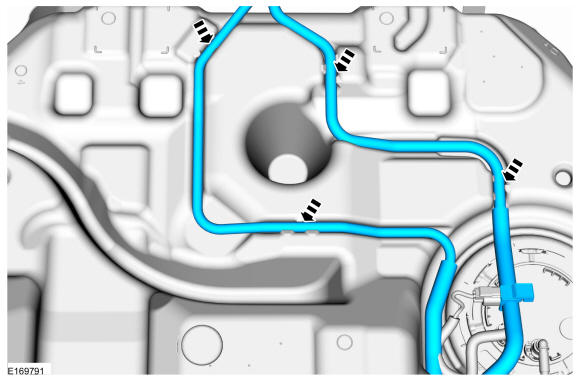

NOTE: Prior to installing fuel tank strap bolts, make sure that the vapor lines are positioned correctly on the top of the fuel tank.

To install, reverse the removal procedure.

Courtesy of FORD MOTOR COMPANY
