Fuel Pump and Sender Unit - Plug-In Hybrid Electric Vehicle (PHEV): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- 2.
Remove the Fuel Tank. Refer to: Fuel Tank - Plug-In Hybrid Electric Vehicle (PHEV) .

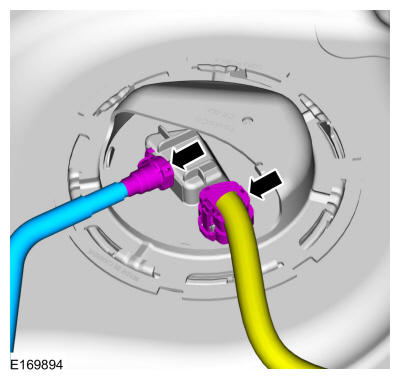

- 3.
Refer to: Quick Release Coupling .

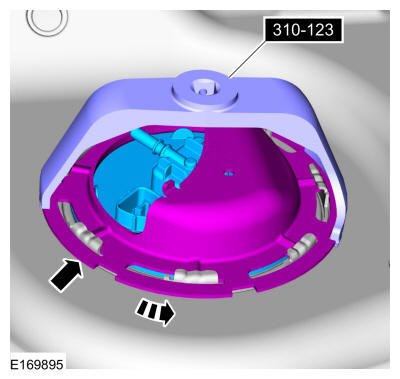

- 4.NOTE: The Fuel Pump and Sender Unit must be handled carefully to avoid damage to the float arm.NOTE: To avoid introducing contamination into the fuel tank use compressed air to clean the Fuel Pump and Sender Unit connections, couplings, flange surfaces and the immediate surrounding area of any dirt or foreign material.NOTE: Place absorbent toweling in the immediate surrounding area in case of fuel spillage.NOTE: Some residual fuel may remain in the Fuel Pump and Sender Unit. Carefully drain into a suitable container.
Carefully lift the Fuel Pump and Sender Unit from the fuel tank allowing access and disconnect internal transfer tube quick connect coupling (if equipped). Remove the Fuel Pump and Sender Unit. Refer to: Quick Release Coupling . Use Special Service Tool: 310-123 Locking Ring, Fuel Tank.
- 5.NOTE: Inspect the mating surfaces of the Fuel Pump and Sender Unit flange and fuel tank O-ring seal contact surfaces. Wipe clean with a lint free towel. Install a new Fuel Pump and Sender Unit or fuel tank if the Oring seal contact area is bent, scratched or corroded.NOTE: Remove and discard the Fuel Pump and Sender Unit O-ring seal.
