Power Distribution

Fig 1: Power Distribution Wiring Diagram (1 Of 54)

GFDW50385

Courtesy of FORD MOTOR COMPANY

Fig 2: Power Distribution Wiring Diagram (2 Of 54)

GFDW50386

Courtesy of FORD MOTOR COMPANY

Fig 3: Power Distribution Wiring Diagram (3 Of 54)

GFDW50387

Courtesy of FORD MOTOR COMPANY

Fig 4: Power Distribution Wiring Diagram (4 Of 54)

GFDW50388

Courtesy of FORD MOTOR COMPANY

Fig 5: Power Distribution Wiring Diagram (5 Of 54)

GFDW50389

Courtesy of FORD MOTOR COMPANY

Fig 6: Power Distribution Wiring Diagram (6 Of 54)

GFDW50390

Courtesy of FORD MOTOR COMPANY

Fig 7: Power Distribution Wiring Diagram (7 Of 54)

GFDW50391

Courtesy of FORD MOTOR COMPANY

Fig 8: Power Distribution Wiring Diagram (8 Of 54)

GFDW50392

Courtesy of FORD MOTOR COMPANY

Fig 9: Power Distribution Wiring Diagram (9 Of 54)

GFDW50393

Courtesy of FORD MOTOR COMPANY

Fig 10: Power Distribution Wiring Diagram (10 Of 54)

GFDW50394

Courtesy of FORD MOTOR COMPANY

Fig 11: Power Distribution Wiring Diagram (11 Of 54)

GFDW50395

Courtesy of FORD MOTOR COMPANY

Fig 12: Power Distribution Wiring Diagram (12 Of 54)

GFDW50396

Courtesy of FORD MOTOR COMPANY

Fig 13: Power Distribution Wiring Diagram (13 Of 54)

GFDW50397

Courtesy of FORD MOTOR COMPANY

Fig 14: Power Distribution Wiring Diagram (14 Of 54)

GFDW50398

Courtesy of FORD MOTOR COMPANY

Fig 15: Power Distribution Wiring Diagram (15 Of 54)

GFDW50399

Courtesy of FORD MOTOR COMPANY

Fig 16: Power Distribution Wiring Diagram (16 Of 54)

GFDW50400

Courtesy of FORD MOTOR COMPANY

Fig 17: Power Distribution Wiring Diagram (17 Of 54)

GFDW50401

Courtesy of FORD MOTOR COMPANY

Fig 18: Power Distribution Wiring Diagram (18 Of 54)

GFDW50402

Courtesy of FORD MOTOR COMPANY

Fig 19: Power Distribution Wiring Diagram (19 Of 54)

GFDW50403

Courtesy of FORD MOTOR COMPANY

Fig 20: Power Distribution Wiring Diagram (20 Of 54)

GFDW50404

Courtesy of FORD MOTOR COMPANY

Fig 21: Power Distribution Wiring Diagram (21 Of 54)

GFDW50405

Courtesy of FORD MOTOR COMPANY

Fig 22: Power Distribution Wiring Diagram (22 Of 54)

GFDW50406

Courtesy of FORD MOTOR COMPANY

Fig 23: Power Distribution Wiring Diagram (23 Of 54)

GFDW50407

Courtesy of FORD MOTOR COMPANY

Fig 24: Power Distribution Wiring Diagram (24 Of 54)

GFDW50408

Courtesy of FORD MOTOR COMPANY

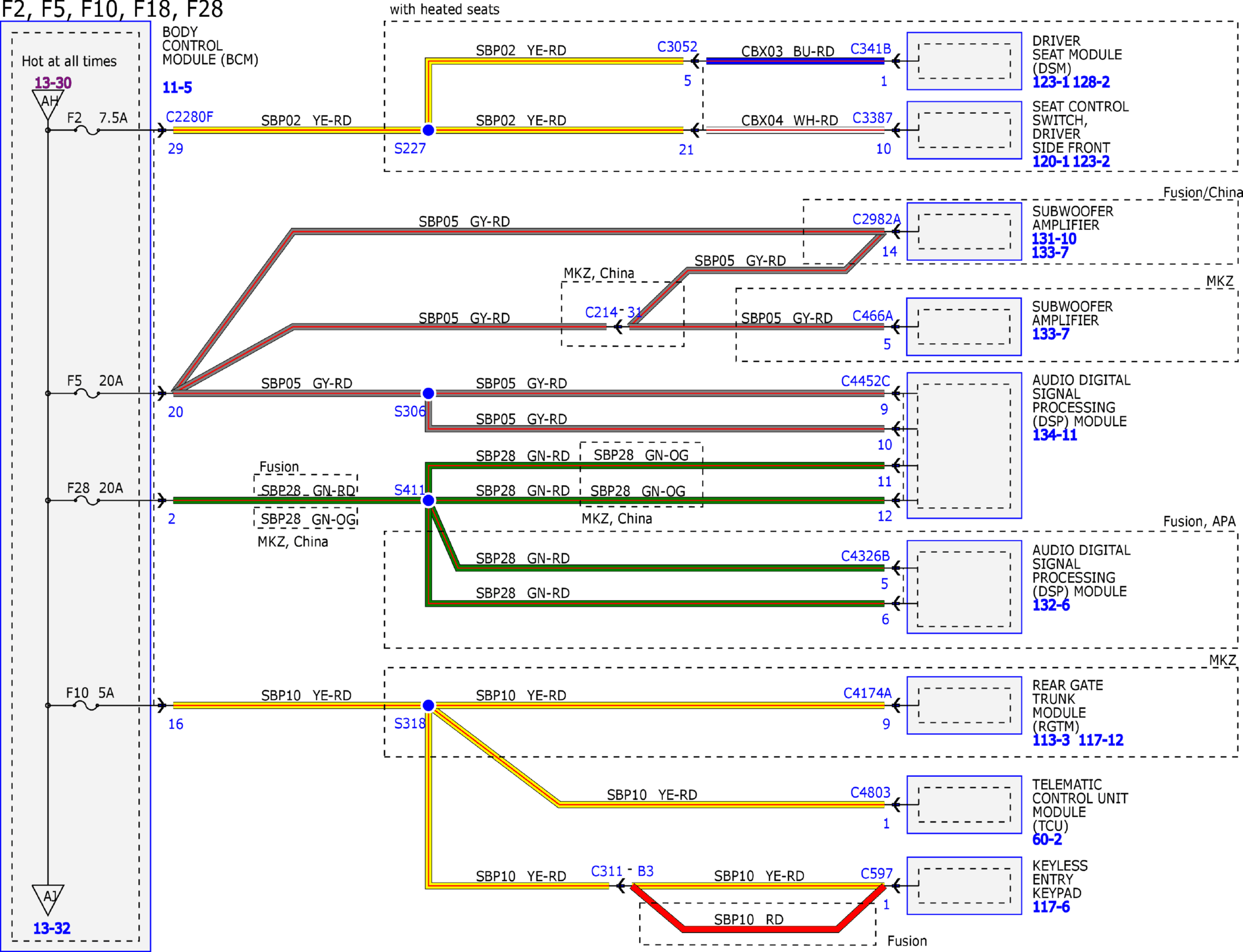

Fig 25: Power Distribution Wiring Diagram (25 Of 54)

GFDW50409

Courtesy of FORD MOTOR COMPANY

Fig 26: Power Distribution Wiring Diagram (26 Of 54)

GFDW50410

Courtesy of FORD MOTOR COMPANY

Fig 27: Power Distribution Wiring Diagram (27 Of 54)

GFDW50411

Courtesy of FORD MOTOR COMPANY

Fig 28: Power Distribution Wiring Diagram (28 Of 54)

GFDW50412

Courtesy of FORD MOTOR COMPANY

Fig 29: Power Distribution Wiring Diagram (29 Of 54)

GFDW50413

Courtesy of FORD MOTOR COMPANY

Fig 30: Power Distribution Wiring Diagram (30 Of 54)

GFDW50414

Courtesy of FORD MOTOR COMPANY

Fig 31: Power Distribution Wiring Diagram (31 Of 54)

GFDW50415

Courtesy of FORD MOTOR COMPANY

Fig 32: Power Distribution Wiring Diagram (32 Of 54)

GFDW50416

Courtesy of FORD MOTOR COMPANY

Fig 33: Power Distribution Wiring Diagram (33 Of 54)

GFDW50417

Courtesy of FORD MOTOR COMPANY

Fig 34: Power Distribution Wiring Diagram (34 Of 54)

GFDW50418

Courtesy of FORD MOTOR COMPANY

Fig 35: Power Distribution Wiring Diagram (35 Of 54)

GFDW50419

Courtesy of FORD MOTOR COMPANY

Fig 36: Power Distribution Wiring Diagram (36 Of 54)

GFDW50420

Courtesy of FORD MOTOR COMPANY

Fig 37: Power Distribution Wiring Diagram (37 Of 54)

GFDW50421

Courtesy of FORD MOTOR COMPANY

Fig 38: Power Distribution Wiring Diagram (38 Of 54)

GFDW50422

Courtesy of FORD MOTOR COMPANY

Fig 39: Power Distribution Wiring Diagram (39 Of 54)

GFDW50423

Courtesy of FORD MOTOR COMPANY

Fig 40: Power Distribution Wiring Diagram (40 Of 54)

GFDW50424

Courtesy of FORD MOTOR COMPANY

Fig 41: Power Distribution Wiring Diagram (41 Of 54)

GFDW50425

Courtesy of FORD MOTOR COMPANY

Fig 42: Power Distribution Wiring Diagram (42 Of 54)

GFDW50426

Courtesy of FORD MOTOR COMPANY

Fig 43: Power Distribution Wiring Diagram (43 Of 54)

GFDW50427

Courtesy of FORD MOTOR COMPANY

Fig 44: Power Distribution Wiring Diagram (44 Of 54)

GFDW50428

Courtesy of FORD MOTOR COMPANY

Fig 45: Power Distribution Wiring Diagram (45 Of 54)

GFDW50429

Courtesy of FORD MOTOR COMPANY

Fig 46: Power Distribution Wiring Diagram (46 Of 54)

GFDW50430

Courtesy of FORD MOTOR COMPANY

Fig 47: Power Distribution Wiring Diagram (47 Of 54)

GFDW50431

Courtesy of FORD MOTOR COMPANY

Fig 48: Power Distribution Wiring Diagram (48 Of 54)

GFDW50432

Courtesy of FORD MOTOR COMPANY

Fig 49: Power Distribution Wiring Diagram (49 Of 54)

GFDW50433

Courtesy of FORD MOTOR COMPANY

Fig 50: Power Distribution Wiring Diagram (50 Of 54)

GFDW50434

Courtesy of FORD MOTOR COMPANY

Fig 51: Power Distribution Wiring Diagram (51 Of 54)

GFDW50435

Courtesy of FORD MOTOR COMPANY

Fig 52: Power Distribution Wiring Diagram (52 Of 54)

GFDW50436

Courtesy of FORD MOTOR COMPANY

Fig 53: Power Distribution Wiring Diagram (53 Of 54)

GFDW50437

Courtesy of FORD MOTOR COMPANY

Fig 54: Power Distribution Wiring Diagram (54 Of 54)

GFDW50438

Courtesy of FORD MOTOR COMPANY
