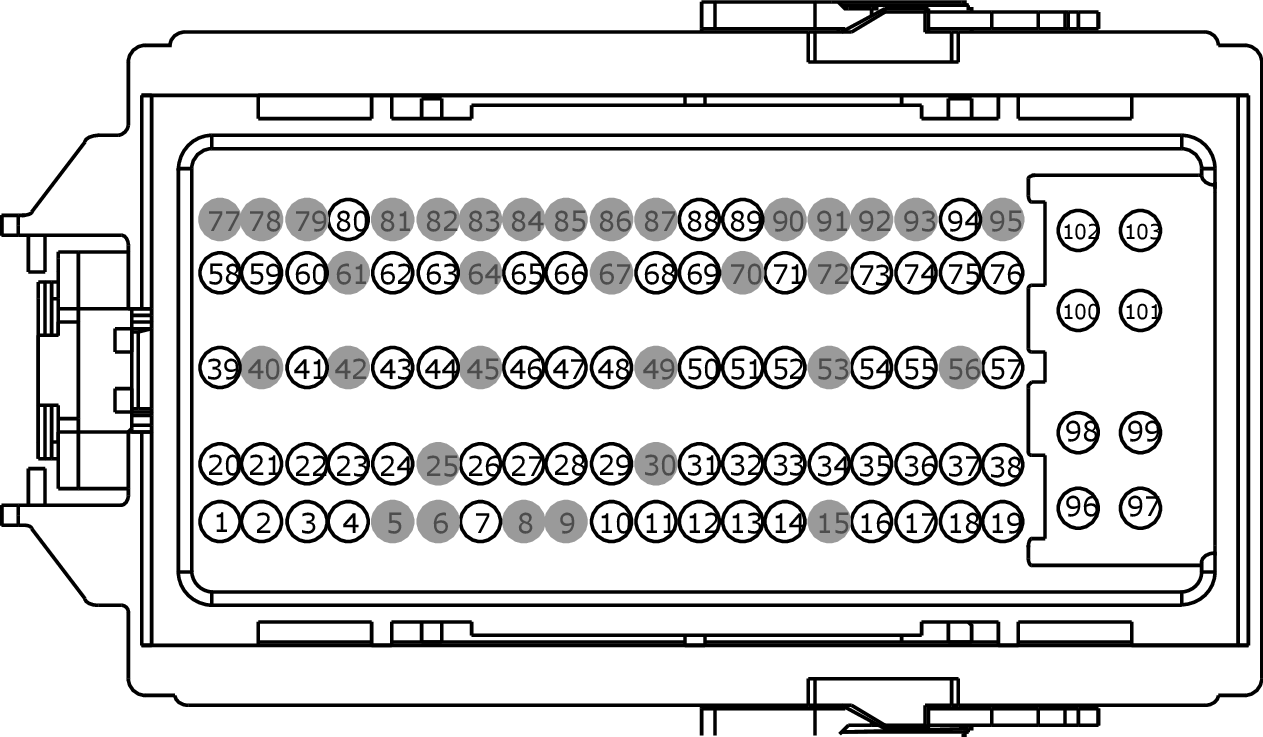

Connector End View (C1915B) - POWERTRAIN CONTROL MODULE (PCM)
Connector:C1915B
Description
POWERTRAIN CONTROL MODULE (PCM)
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE233 (WH-OG) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) | |
| 2 | CH302 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) | |
| 3 | CH307 (GY-BU) | 18 | CTRL MOD. - POWERTRAIN # HEATED PUMP CONTROL RELAY (HPCR) | |
| 4 | CEC01 (WH-BU) | 20 | CTRL MOD. - COOLING FAN CONTROL HIGH (HFC) | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | RE403 (WH-VT) | 18 | CTRL MOD. - SENSOR CLUTCH PEDAL - | |
| 7 | RE406 (GY-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B) | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | LE137 (BU-GY) | 20 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPVREF2) | |
| 11 | LE423 (GN-VT) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) | |
| 11 | LE458 (BU-WH) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) | |
| 12 | LE136 (GN-OG) | 20 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPVREF1) | |
| 13 | LE230 (BN-BU) | 20 | CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (VREF) | |
| 14 | LE423 (GN-VT) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) | |
| 15 | * | * | Not Used | |
| 16 | RE230 (WH-VT) | 20 | CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER | |
| 16 | RE230 (WH-VT) | 18 | CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER | |
| 16 | RE230 (WH-VT) | 20 | CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER | |
| 17 | RE407 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) | |
| 18 | RE407 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) | |
| 19 | RE320 (BU) | 20 | CTRL MOD. - POWERTRAIN # INTAKE AIR TEMP. SENSOR (SIGRTN) | |
| 19 | RE332 (YE-BU) | 20 | CTRL MOD. - POWERTRAIN # (SIGRTN) | |
| 20 | CE114 (GN-BU) | 20 | CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANV) | |
| 21 | CE170 (WH-BU) | 22 | CTRL MOD. - POWERTRAIN # ENGINE START SIGNAL | |
| 22 | CE113 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (EVAPCP) | |
| 23 | CEC02 (GN-BU) | 20 | CTRL MOD. - COOLING FAN CONTROL LOW (LFC) | |
| 24 | VE757 (WH) | 18 | SENSOR - CLUTCH MASTER CYLINDER 2 (CPP2) | |
| 25 | * | * | Not Used | |
| 26 | CDC15 (VT) | 20 | GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI) | |
| 27 | VE518 (BN-WH) | 20 | FUEL PUMP MONITOR (FPM) | |
| 28 | CE436 (VT-OG) | 22 | CTRL MOD. -WAKE UP PCM | |
| 29 | CR115 (BN) | 22 | CTRL MOD. - IMPACT EVENT SIGNAL (IES) | |
| 30 | * | * | Not Used | |
| 31 | CET47 (BU) | 20 | SWITCH - REVERSE (RS) | |
| 32 | LE424 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # CHARGE AIR COOLER TEMPERATURE (CACT) | |
| 32 | VE804 (GN-BN) | 20 | CTRL MOD. - POWERTRAIN # CHARGE AIR COOLER TEMPERATURE (CACT) | |
| 32 | VE804 (GN-BN) | 18 | CTRL MOD. - POWERTRAIN # CHARGE AIR COOLER TEMPERATURE (CACT) | |
| 33 | VE722 (BN) | 18 | SENSOR - EXHAUST GAS TEMPERATURE 1 (EGT1) (PRE CAT) | |
| 34 | RE335 (BN-VT) | 20 | CTRL MOD. - POWERTRAIN # POWERTRAIN AMBIENT TEMP. SENSOR (AAT) | |
| 35 | RE137 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPRTN2) | |
| 36 | RE136 (VT-GN) | 20 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPRTN1) | |
| 37 | RE242 (GN) | 18 | CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST OR UNIQUE OR COMMON (SIGRTN) | |
| 38 | RE242 (GN) | 18 | CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST OR UNIQUE OR COMMON (SIGRTN) | |
| 39 | VE225 (YE-OG) | 20 | CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) | |
| 40 | * | * | Not Used | |
| 41 | VE462 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE | |
| 42 | * | * | Not Used | |
| 43 | CDC12 (YE) | 20 | CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) | |
| 44 | LE456 (YE-BU) | 18 | CTRL MOD. - SENSOR CLUTCH MASTER CYLINDER + | |
| 45 | * | * | Not Used | |
| 46 | VCF34 (WH) | 20 | CTRL MOD. - ALL WHEEL DRIVE # MONITOR (AWDM) | |
| 47 | CDC35 (BU-WH) | 20 | SWITCH - IGNITION # START | |
| 48 | CBB26 (BU-WH) | 20 | FUSE - 26 OR CIRCUIT BREAKER (ISP-R) | |
| 49 | * | * | Not Used | |
| 50 | VDN06 (WH-GN) | 20 | CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 | |
| 51 | VE750 (GN-BU) | 20 | SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) | |
| 52 | VH433 (VT-OG) | 20 | TRANSDUCER - A/C PRESSURE (ACPT) + | |
| 53 | * | * | Not Used | |
| 54 | VE702 (BU-WH) | 20 | SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) | |
| 55 | VE701 (YE-OG) | 20 | SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) | |
| 56 | * | * | Not Used | |
| 57 | VE731 (YE-GN) | 18 | SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) | |
| 58 | CE237 (BN-WH) | 20 | CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCMRC) | |
| 59 | CDC10 (BU-OG) | 20 | CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC) | |
| 60 | VCF35 (GN) | 20 | CTRL MOD. - POWERTRAIN # ALL WHEEL DRIVE COMMAND (AWDC) | |
| 61 | * | * | Not Used | |
| 62 | CDC54 (WH-GN) | 20 | CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) | |
| 63 | VET77 (GY-YE) | 18 | ACTUATOR - GEAR SHIFT # PWM OUT 2 (PWM2) | |
| 64 | * | * | Not Used | |
| 65 | CES09 (VT-OG) | 20 | SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + | |
| 66 | CCB08 (VT-WH) | 20 | SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN | |
| 67 | * | * | Not Used | |
| 68 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 69 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 70 | * | * | Not Used | |
| 71 | VE727 (BU-BN) | 18 | SENSOR - LOW FUEL PRESSURE (FLP) | |
| 72 | * | * | Not Used | |
| 73 | VE922 (VT-GN) | 20 | TRANSDUCER - FUEL TANK PRESSURE (FTP) | |
| 74 | VE803 (BU-GN) | 18 | SENSOR - MANIFOLD ABSOLUTE PRESSURE (TCBP) | |
| 74 | VE805 (GY-OG) | 20 | CTRL MOD. - POWERTRAIN # TURBOCHARGER BOOST PRESSURE (TCBP) | |
| 75 | VE740 (VT-GY) | 20 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | |
| 75 | VE740 (VT-GY) | 18 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | |
| 76 | VDC61 (VT-GN) | 20 | SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR | |
| 77 | * | * | Not Used | |
| 78 | * | * | Not Used | |
| 79 | * | * | Not Used | |
| 80 | CE420 (GY-VT) | 20 | CTRL MOD. - POWERTRAIN # VAPOR BLOCKING VALVE (VBV) | |
| 81 | * | * | Not Used | |
| 82 | * | * | Not Used | |
| 83 | * | * | Not Used | |
| 84 | * | * | Not Used | |
| 85 | * | * | Not Used | |
| 86 | * | * | Not Used | |
| 87 | * | * | Not Used | |
| 88 | CET42 (GN-VT) | 20 | SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) | |
| 89 | CET43 (GY) | 20 | SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) | |
| 90 | * | * | Not Used | |
| 91 | * | * | Not Used | |
| 92 | * | * | Not Used | |
| 93 | * | * | Not Used | |
| 94 | VDC61 (VT-GN) | 20 | SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR | |
| 95 | * | * | Not Used | |
| 96 | GD113 (BK-YE) | 16 | GROUND - COWL TOP RIGHT (PWRGND) | |
| 97 | GD113 (BK-YE) | 16 | GROUND - COWL TOP RIGHT (PWRGND) | |
| 98 | GD113 (BK-YE) | 16 | GROUND - COWL TOP RIGHT (PWRGND) | |
| 99 | GD113 (BK-YE) | 16 | GROUND - COWL TOP RIGHT (PWRGND) | |
| 100 | SBB18 (YE-RD) | 16 | FUSE - 18 OR CIRCUIT BREAKER (KAPWR) | |
| 101 | CBB07 (GN-BU) | 16 | FUSE - 7 OR CIRCUIT BREAKER (VPWR) | |
| 102 | CBB07 (GN-BU) | 16 | FUSE - 7 OR CIRCUIT BREAKER (VPWR) | |
| 103 | CBB07 (GN-BU) | 16 | FUSE - 7 OR CIRCUIT BREAKER (VPWR) |
