Hood Alignment

Adjustment

NOTE: Removal steps in this procedure may contain installation details.

All alignments

  1. Inspect the hood-to-body dimensions. Refer to: Body and Frame .

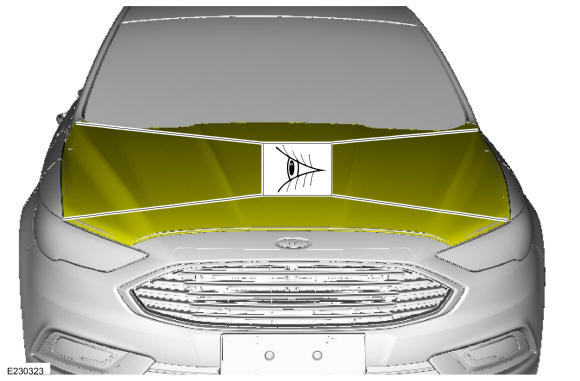

    GFD196151Courtesy of FORD MOTOR COMPANY
  2. Open the hood.

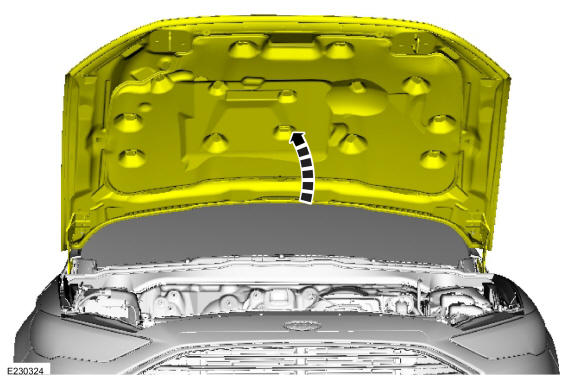

    GFD196140Courtesy of FORD MOTOR COMPANY
  3. Remove the hood latch. Refer to: Hood Latch .

    Hood fore and aft, left and right alignments

  4. Loosen the nuts enough to permit movement of the hood.

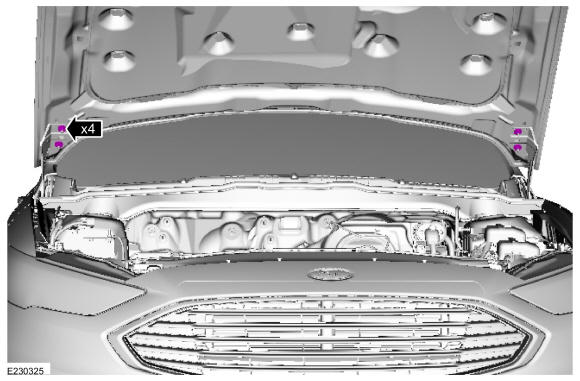

    GFD196152Courtesy of FORD MOTOR COMPANY
  5. Carefully close the hood.
    GFD196153Courtesy of FORD MOTOR COMPANY
  6. Adjust the hood to specification. Refer to: Body and Frame .

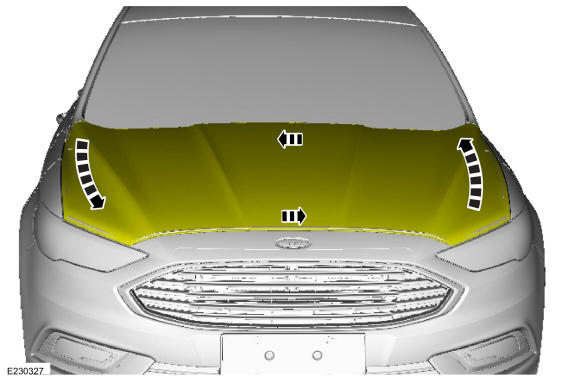

    GFD196154Courtesy of FORD MOTOR COMPANY
  7. Carefully open the hood.
    GFD196140Courtesy of FORD MOTOR COMPANY
  8. Tighten the nuts.

    Torque: 18 lb.ft (25 Nm)

    GFD196152Courtesy of FORD MOTOR COMPANY

    Hood front up and down alignments

  9. Adjust the bump stop rubber.

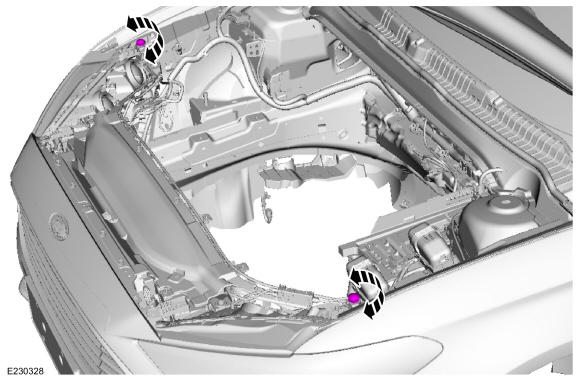

    GFD196155Courtesy of FORD MOTOR COMPANY
  10. Carefully close the hood.
    GFD196153Courtesy of FORD MOTOR COMPANY
  11. Adjust the hood to specification. Refer to: Body and Frame .

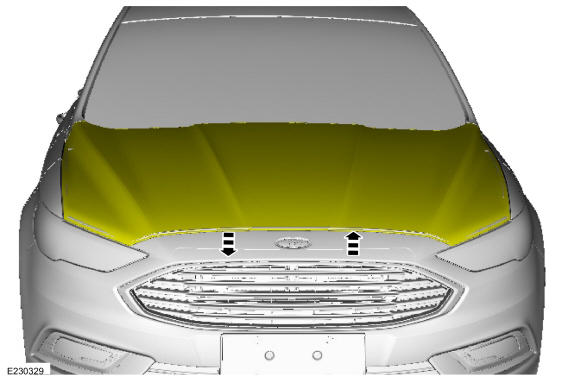

    GFD196156Courtesy of FORD MOTOR COMPANY

    All alignments

  12. Install the hood latch. Refer to: Hood Latch .
  13. Inspect the body-to-hood dimensions. Refer to: Body and Frame .
GFD196151Courtesy of FORD MOTOR COMPANY
