Passive Anti-Theft System (Pats) - Vehicles With: Push Button Start (Except Hybrid)
>>
Description And Operation
>>

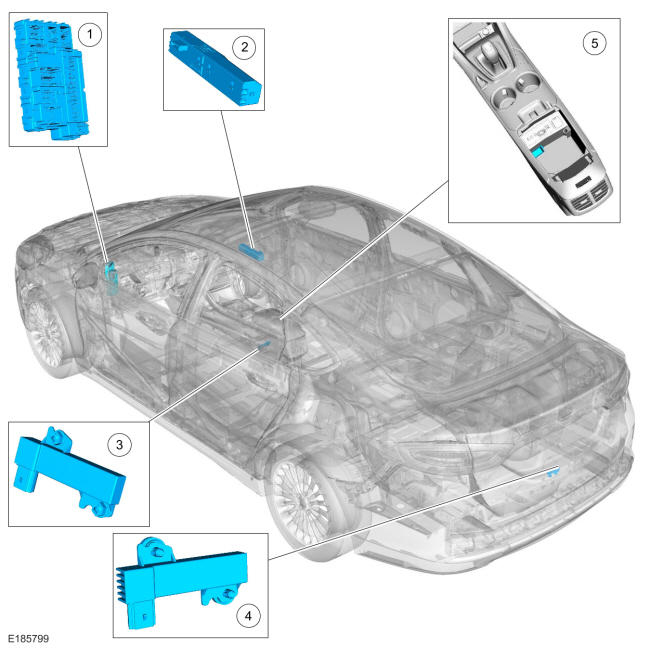

Passive Anti-Theft System (PATS) - Component Location
Passive Anti-Theft System (PATS) - Component Location
Courtesy of FORD MOTOR COMPANY
Item
Description
1
BCM
2
RTM
3
PATS front antenna
4
Keyless entry rear antenna
5
Passive key backup starting location
