Overhead Console: Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Consoles look different depending on option level.
- 1.
- 1.

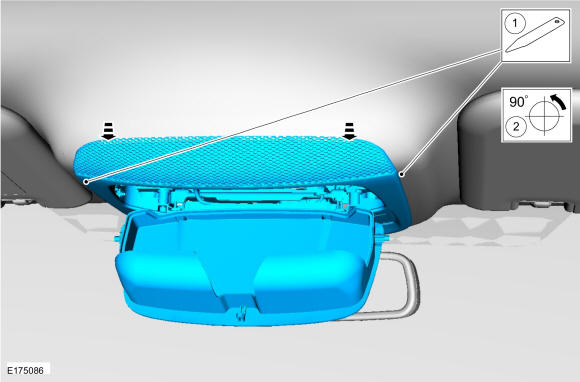

Insert trim tool in location(s) shown in illustration.
- 2.
Rotate the tool 90 degrees to release the overhead console rear retainers.
- 1.
- 2.

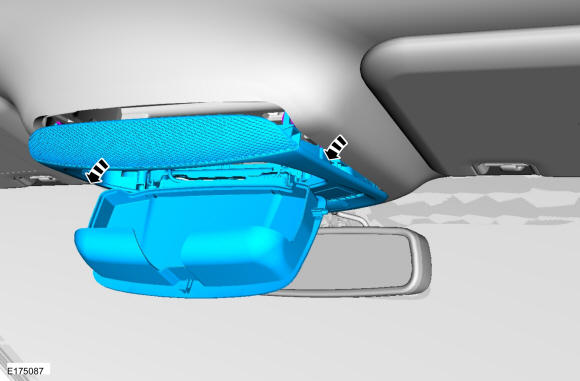

Working from the rear to the front along each side release the overhead console retainers.
- 3.

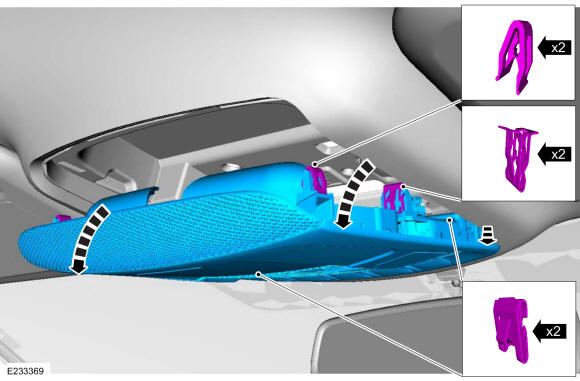

Rotate to release the clips and remove the overhead console.
- 4.

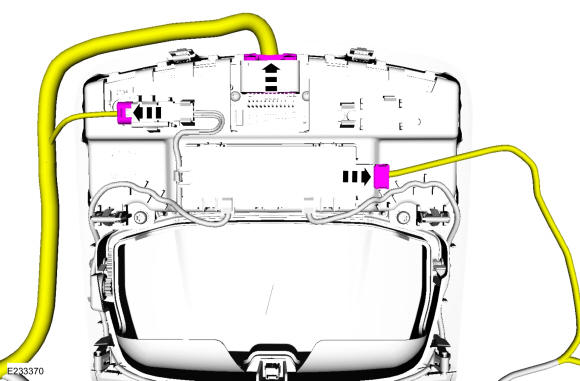

Disconnect the electrical connectors.
