Parking, Rear and License Lamps

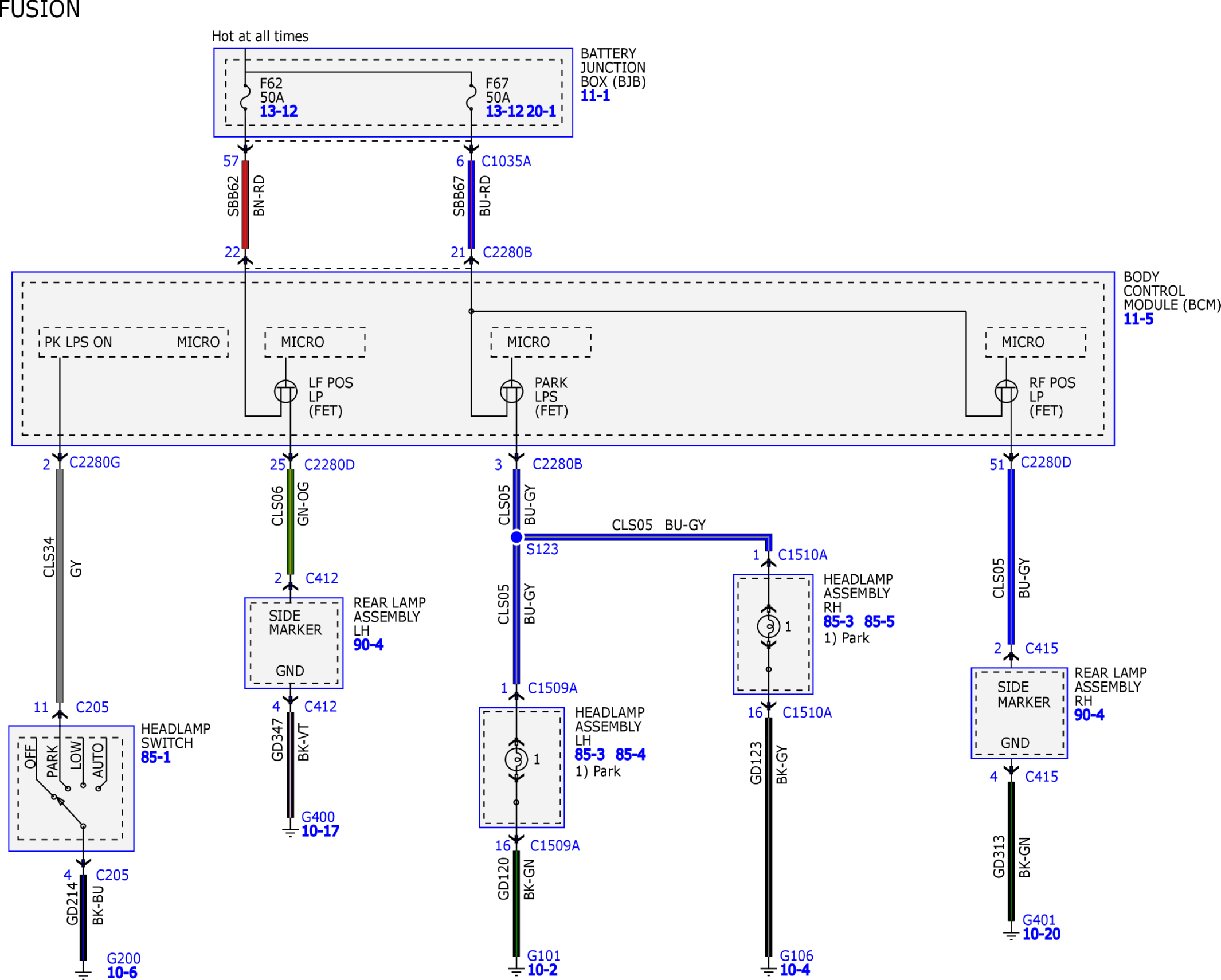

Fig 1: Parking, Rear and License Lamps Wiring Diagram (1 Of 4)
GFDW50381Courtesy of FORD MOTOR COMPANY

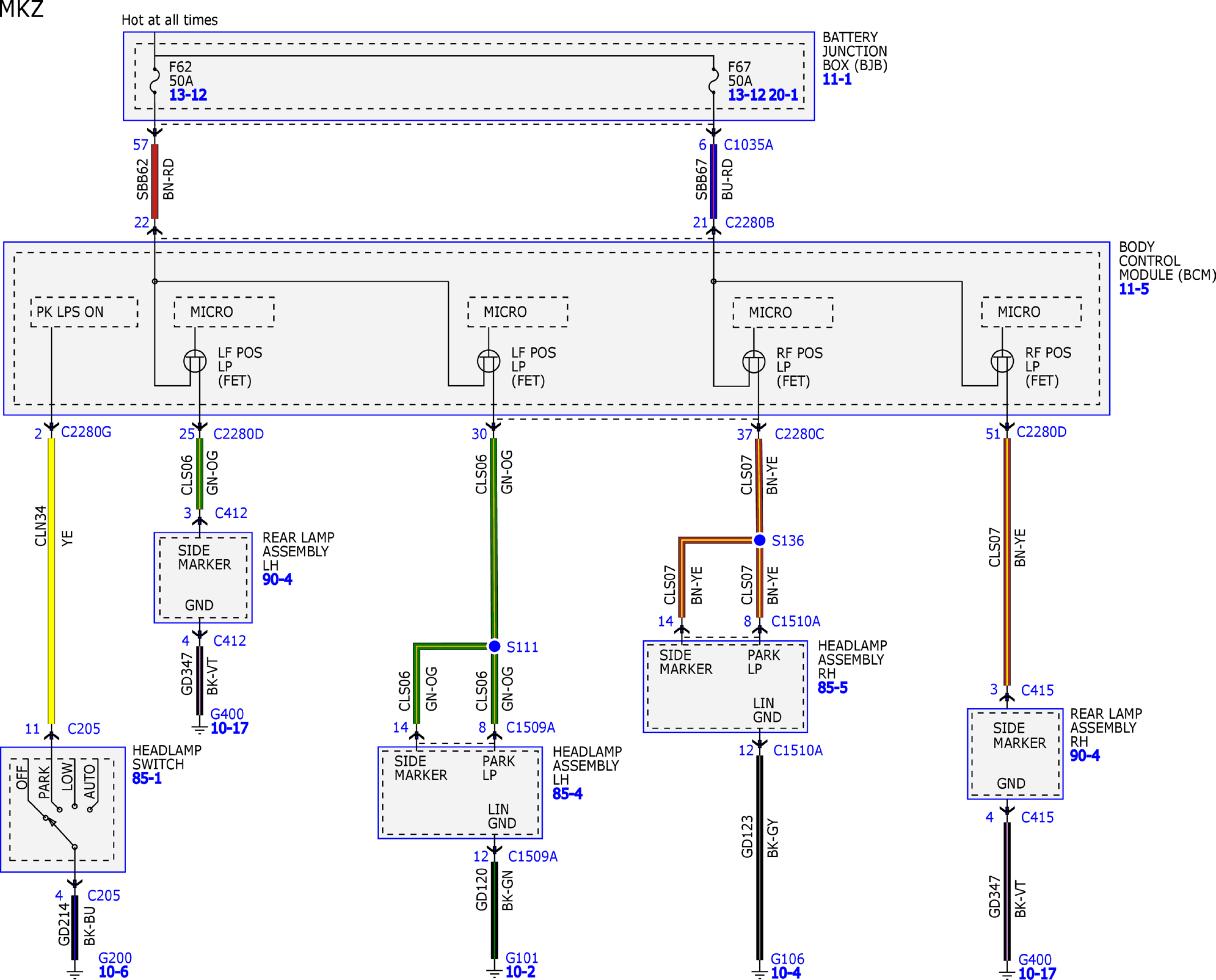

Fig 2: Parking, Rear and License Lamps Wiring Diagram (2 Of 4)
GFDW50382Courtesy of FORD MOTOR COMPANY

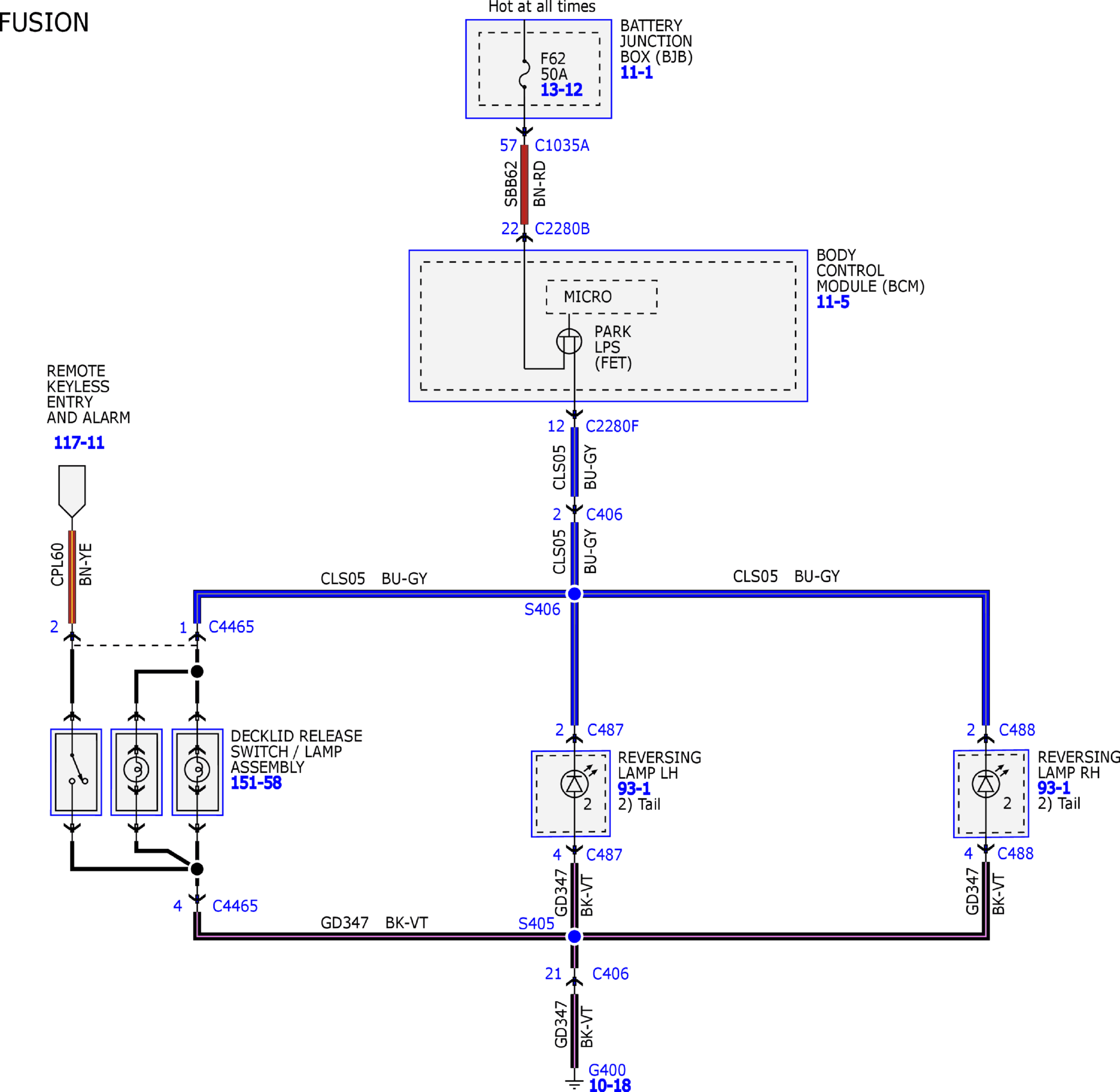

Fig 3: Parking, Rear and License Lamps Wiring Diagram (3 Of 4)
GFDW50383Courtesy of FORD MOTOR COMPANY

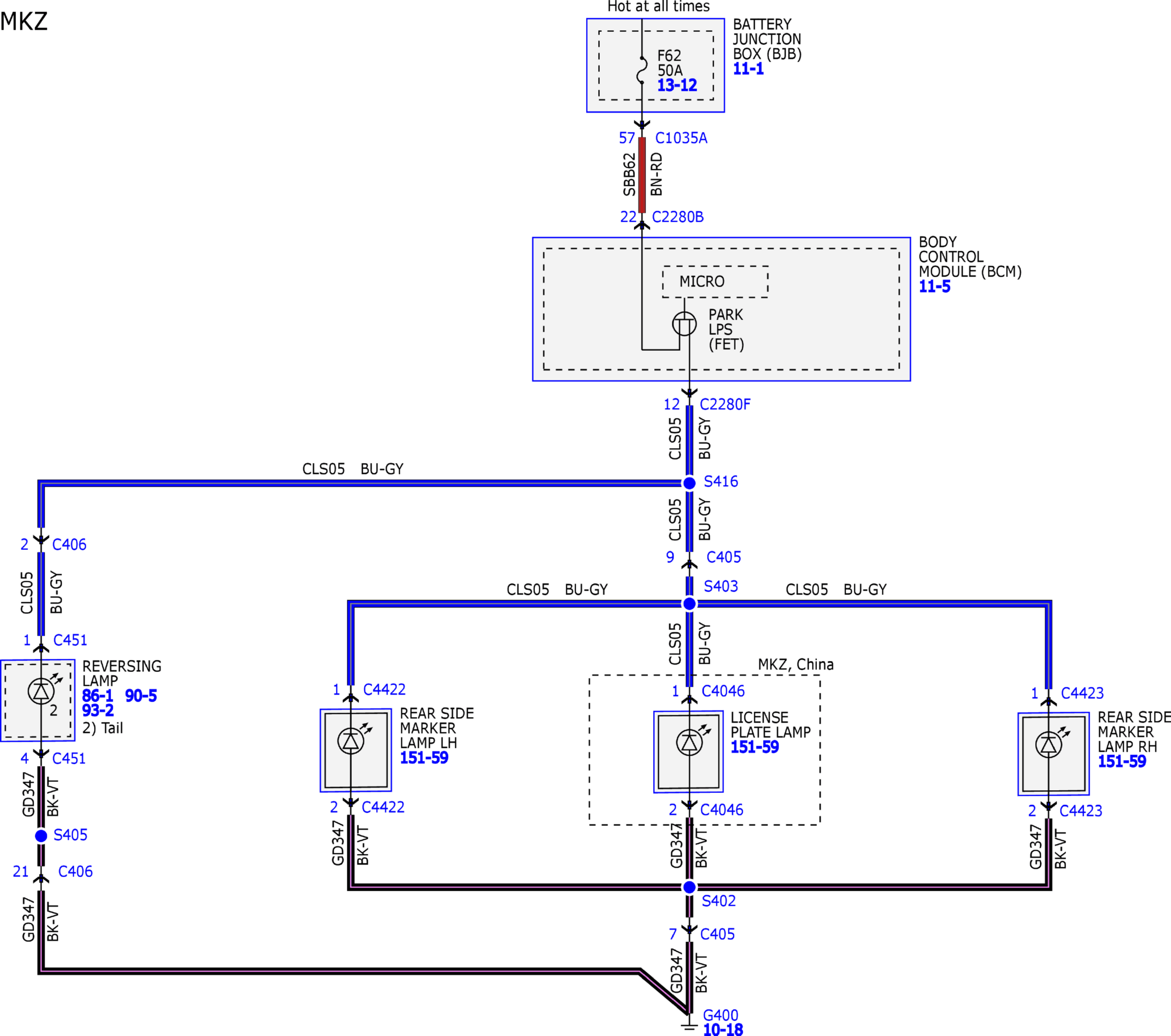

Fig 4: Parking, Rear and License Lamps Wiring Diagram (4 Of 4)
GFDW50384Courtesy of FORD MOTOR COMPANY
